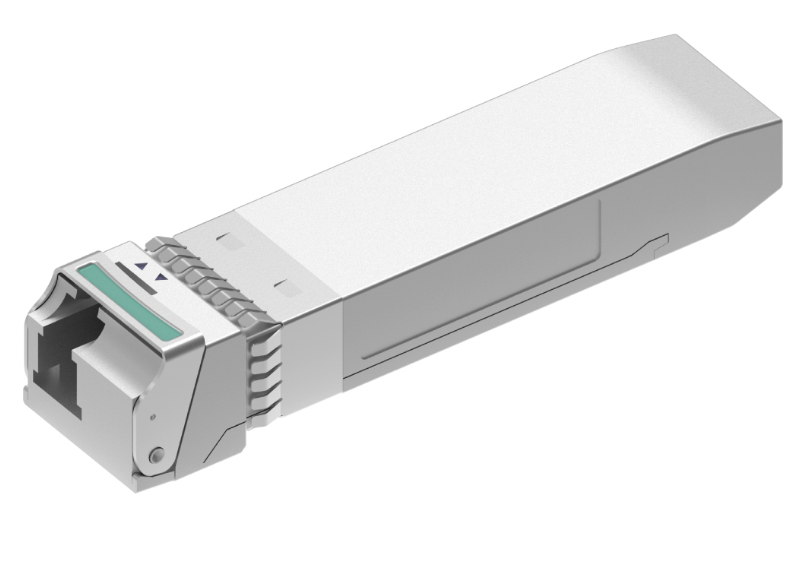

10G SFP+ BiDi 10～80km Single-fiber Bidirectional Transceiver Module (Industrial-Grade Option Available)
FIBERSTAMP’s 10G BiDi SFP+ optical transceiver series is widely deployed in 10G Ethernet and Optical Transport Network (OTN OTU2e) applications. The modules are fully compatible with 10G CPRI, SONET OC-192 / SDH STM-64, and 10G Fibre Channel standards. Designed for single-fiber transmission over single-mode fiber, they support reach options from 10 km up to 80 km, enabling efficient fiber utilization and flexible network deployment.
Description
- Hot-pluggable SFP+ form factor
- Full-duplex optical transceiver module
- Compliant with SFP+ MSA and 10G Ethernet standards
- Data rates up to 10.3 Gbps
- DFB laser transmitter with PIN/APD receiver
- Single-fiber transmission over single-mode fiber, supporting distances from 10 km to 80 km
- Simplex LC optical connector
- Integrated Digital Diagnostic Monitoring (DDM)
- Commercial operating temperature range: 0°C to 70°C
- Industrial-grade operating temperature range: –40°C to +85°C (Part Numbers Ending with “T”)
- 3.3 V power supply
- RoHS compliant (lead-free)
| P/N | Description |
| FCB-E102733K10CT | 10GE BiDi SFP+, 1270nm Tx DFB 1330nm-Rx PIN, 1330nm-Tx DFB 1270nm-Rx PI, 10km, SMF, Single LC, 1.5W |
| FCB-E103327K10CT | 10GE/CPRI BiDi SFP+, 1330nm-Tx DFB 1270nm-Rx PIN, 10km, SMF, Single LC, Industrial Grade, 1.2W |
| FCB-E102733K20CT | 10GE BiDi SFP+, 1270nm-Tx DFB 1330nm-Rx PIN, 20km, SMF, Single LC, 1.5W |
| FCB-E103327K20CT | 10GE/CPRI BiDi SFP+, 1330nm-Tx DFB 1270nm-Rx PIN, 20km, SMF, Single LC, Industrial Grade, 1.2W |
| FCB-E102733K40CT | 10GE BiDi SFP+, 1270nm-Tx DFB 1330nm-Rx PIN, 40km, SMF, Single LC, 1.5W |
| FCB-E103327K40CT | 10GE/CPRI BiDi SFP+, 1330nm-Tx DFB 1270nm-Rx PIN, 40km, SMF, Single LC, Industrial Grade, 1.2W |
| FCB-E102733K60CT | 10GE/CPRI BiDi SFP+, 1270nm-Tx DFB 1330nm-Rx APD, 60km, SMF, Single LC, Industrial Grade, 1.2W |
| FCB-E103327K60CT | 10GE/CPRI BiDi SFP+, 1330nm-Tx DFB 1270nm-Rx APD, 60km, SMF, Single LC, Industrial Grade, 1.2W |
| FCB-E104955K80C | 10GE/OTN BiDi SFP+, 1490nm-Tx 1550nm-Rx, 80km, SMF, Single LC |
| FCB-E105549K80C | 10GE/OTN BiDi SFP+, 1550nm-Tx 1490nm-Rx, 80km, SMF, Single LC |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
