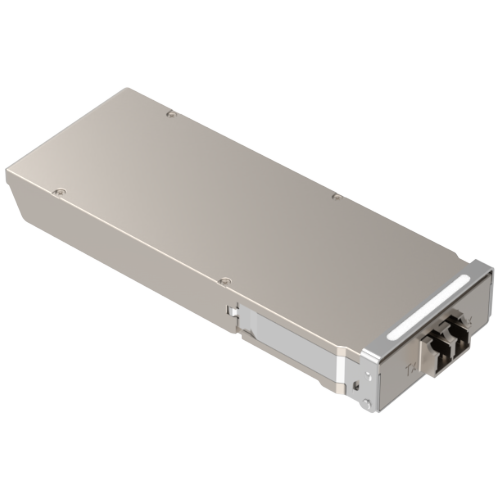

CFP2 200G DCO C-band 50GHz SMF LC Digital Coherent Optical Transceiver Modules

FIBERSTAMP's 200G CFP2-DCO is a digital coherent optical transceiver module designed for 100G/200G Ethernet and OTN OTU4 links reach up to 120km/600km/1200km over SMF. The CAUI and OTL4.10 electrical interface and MDIO management interface are built in the module.
Get a Quote
overview
download
more
Part Number Product Description
FSTC2D-200G-ZR-1 200G CFP2-DCO 120km w/ EDFA
FSTC2D-200G-ZR-0 200G CFP2-DCO 120km w/o EDFA
FSTC2D-200G-MR-1 200G CFP2-DCO 600km w/ EDFA
FSTC2D-200G-MR-0 200G CFP2-DCO 600km w/o EDFA
FSTC2D-200G-LH-1 200G CFP2-DCO 1200km w/ EDFA
FSTC2D-200G-LH-0 200G CFP2-DCO 1200km w/o EDFA

200G CFP2-DCO 120km w/ EDFA - FSTC2D-200G-ZR-1

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency E-FEC
  • Data rate up to 200Gbps
  • Compliant with CFP2 MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 120km
  • Integrated with EDFA
  • Power consumption < 19W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

200G CFP2-DCO 120km w/o EDFA - FSTC2D-200G-ZR-0

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency E-FEC
  • Data rate up to 200Gbps
  • Compliant with CFP2 MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 120km
  • Without EDFA
  • Power consumption < 18W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

200G CFP2-DCO 600km w/ EDFA - FSTC2D-200G-MR-1

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency H-FEC
  • Data rate up to 200Gbps
  • Compliant with CFP2 MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 600km
  • Integrated with EDFA
  • Power consumption < 20W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

200G CFP2-DCO 600km w/o EDFA - FSTC2D-200G-MR-0

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency H-FEC
  • Data rate up to 200Gbps
  • Compliant with CFP2 MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 600km
  • Without EDFA
  • Power consumption < 19W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

200G CFP2-DCO 1200km w/ EDFA - FSTC2D-200G-LH-1

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency SD-FEC
  • Data rate up to 200Gbps
  • Compliant with CFP2 MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 1200km
  • Integrated with EDFA
  • Power consumption < 26W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

200G CFP2-DCO 1200km w/o EDFA - FSTC2D-200G-LH-0

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency SD-FEC
  • Data rate up to 200Gbps
  • Compliant with CFP2 MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 1200km
  • Without EDFA
  • Power consumption < 25W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Product Name 200G CFP2-DCO ZR 200G CFP2-DCO MR 200G CFP2-DCO LH
Data Rate 200GE/100GE/OTU4 200GE/100GE/OTU4 100GE/OTU4
Application 120km DWDM/P2P 600km DWDM 2000km DWDM
CAUI-4 for 100GBE host interface
OTL4.4 for OTU4 host interface
Built-in OTN Processing
Interoperability with G.709 FEC
PRBS generation & detection for line/host interfaces
CFP2 MSA compliant
