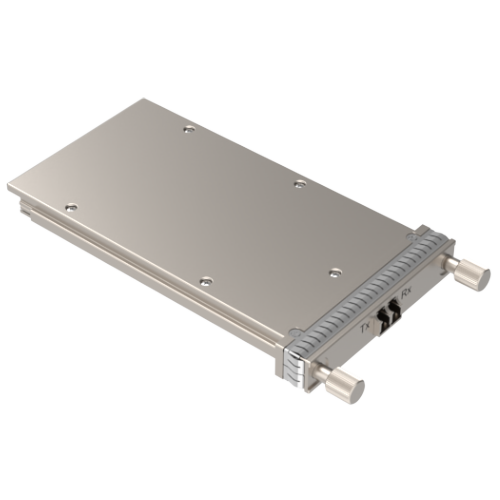

CFP 100G DCO C-band 50GHz SMF LC Digital Coherent Optical Transceiver Modules

FIBERSTAMP's 100G CFP-DCO digital coherent optical transceiver is a hot-pluggable CFP form-factor optical module designed for 100G Ethernet and OTN OTU4 links reach up to 120km/600km/1200km over SMF. The CAUI and OTL4.10 electrical interface and MDIO management interface are built in the module.
Get a Quote
overview
download
more
Part Number Product Description
FSTCD-100G-ZR-1 100G CFP-DCO 120km w/ EDFA
FSTCD-100G-ZR-0 100G CFP-DCO 120km w/o EDFA
FSTCD-100G-MR-1 100G CFP-DCO 600km w/ EDFA
FSTCD-100G-MR-0 100G CFP-DCO 600km w/o EDFA
FSTCD-100G-LH-1 100G CFP-DCO 1200km w/ EDFA
FSTCD-100G-LH-0 100G CFP-DCO 1200km w/o EDFA

100G CFP-DCO 120km w/ EDFA - FSTCD-100G-ZR-1

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency E-FEC
  • Data rate up to 128Gbps
  • Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 120km
  • Integrated with EDFA
  • Power consumption < 22W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

100G CFP-DCO 120km w/o EDFA - FSTCD-100G-ZR-0

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency E-FEC
  • Data rate up to 128Gbps
  • Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 120km
  • Without EDFA
  • Power consumption < 21W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

100G CFP-DCO 600km w/ EDFA - FSTCD-100G-MR-1

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency H-FEC
  • Data rate up to 128Gbps
  • Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 600km
  • Integrated with EDFA
  • Power consumption < 23W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

100G CFP-DCO 600km w/o EDFA - FSTCD-100G-MR-0

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency H-FEC
  • Data rate up to 128Gbps
  • Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 600km
  • Without EDFA
  • Power consumption < 22W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

100G CFP-DCO 1200km w/ EDFA - FSTCD-100G-LH-1

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency SD-FEC
  • Data rate up to 128Gbps
  • Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 1200km
  • Integrated with EDFA
  • Power consumption < 29W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

100G CFP-DCO 1200km w/o EDFA - FSTCD-100G-LH-0

  • Full C-band 50GHz ITU-T transmitter
  • Built in Client and line OTN processing
  • Low latency SD-FEC
  • Data rate up to 128Gbps
  • Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
  • Compliant with OTL4.10 and CAUI
  • Transmission distance up to 1200km
  • Without EDFA
  • Power consumption < 28W
  • Duplex LC receptacles
  • Hot-pluggable electrical interface
  • Operating case temperature range 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Product Name 100G CFP-DCO ZR 100G CFP-DCO MR 100G CFP-DCO LH
Data Rate 100GE/OTU4 100GE/OTU4 100GE/OTU4
Application 120km DWDM/P2P 600km DWDM 2000km DWDM
CAUI-4 for 100GBE host interface
OTL4.4 for OTU4 host interface
Built-in OTN Processing
Interoperability with G.709 FEC
PRBS generation & detection for line/host interfaces
CFP MSA compliant
  •
  •
  •
