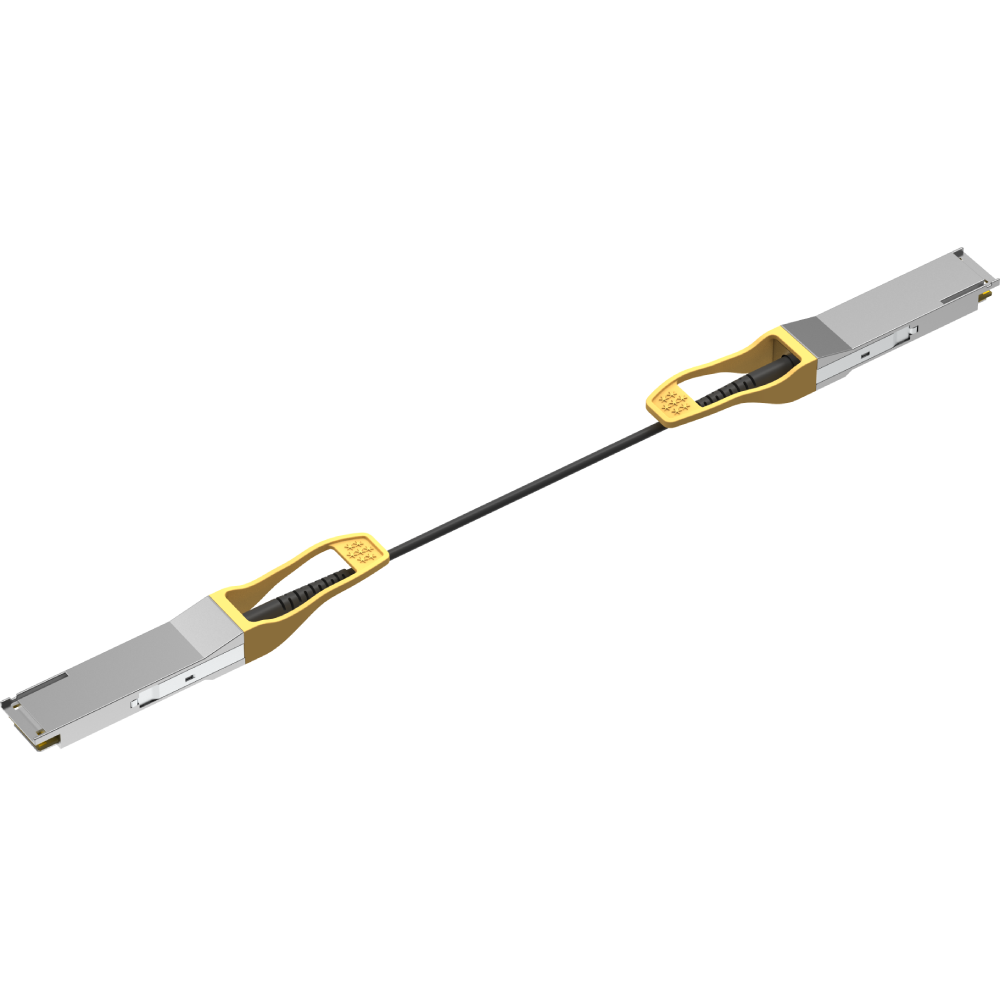

100G QSFP28 Hardened Active Optical Cable
The FIBERSTAMP Technologies 100G QSFP28 HAOC is a four-channel, pluggable, parallel fiber-optic transceiver designed for 100G or 40G Ethernet and InfiniBand FDR/EDR applications. This high-performance module is ideal for short-range, multi-lane data communications and interconnect deployments.
Built with a ruggedized optical cable structure featuring a stainless steel tube, Kevlar reinforcement, and an LSZH jacket, delivering reliable performance over distances of up to 70 meters on OM3 multimode fiber. Engineered for long-term durability and resistance to harsh environments, it ensures superior reliability for demanding applications.
Description
Features
▪ 4 channels full-duplex transceiver modules
▪ Transmission data rate up to 25Gbps per channel ▪ Support 40GE and 56G FDR data rate
▪ 4 channels 850nm VCSEL array
▪ 4 channels PIN photo detector array
▪ Internal CDR circuits on both receiver and transmitter channels
▪ Support CDR bypass
▪ Low power consumption <2W
▪ Hot Pluggable QSFP form factor ▪ Maximum link length of 70m on OM3 Multimode Fiber (MMF)
▪ Single MPO connector receptacle
▪ Operating case temperature -40°C to +85°C
▪ 3.3V power supply voltage
▪ RoHS compliant(lead-free)
▪ Hardened active optical cable with metal tube and Kevlar strengthen
Applications
▪ IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4
▪ Infiniband FDR/EDR
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
