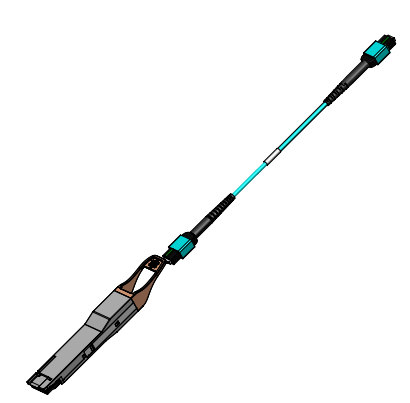

400G QSFP-DD SR8 Optical Transceiver for liquid cooling (MPO16)

FIBERSTAMP immersion 400G QSFP-DD SR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2×200 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8×26.5625GBd. Each lane can operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber with FEC, the optical interface is pluggable MPO16 pigtail.

It’s suitable for immersion environment, the internal optics are covered and protected with special technique to prevent cooling liquid leakage.

Get A Quote

Description

Features

8 channelsfull-duplex transceiver modules
Transmission data rate up to 53Gbps per channel
8x53Gbps PAM4 transmitter and PAM4 receiver
8 channels 850nm VCSEL array
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Power consumption <8.5W
Hot Pluggable QSFP DD form factor and Compliant with CMIS
Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
Pluggable MPO16 pigtail
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3V power supply voltage
RoHS compliant(lead free)

Applications

IEEE 802.3cd 200GBASE-SR4
Especially design for liquid immersion environment

Additional Information

Application	Data Center
Form Factor	QSFP-DD
Media Type	MMF
Interface	MPO16
Product Type	Immersion Liquid Cooling Optics
Protocol	Ethernet
Reach	<100m
Wavelength	850nm
