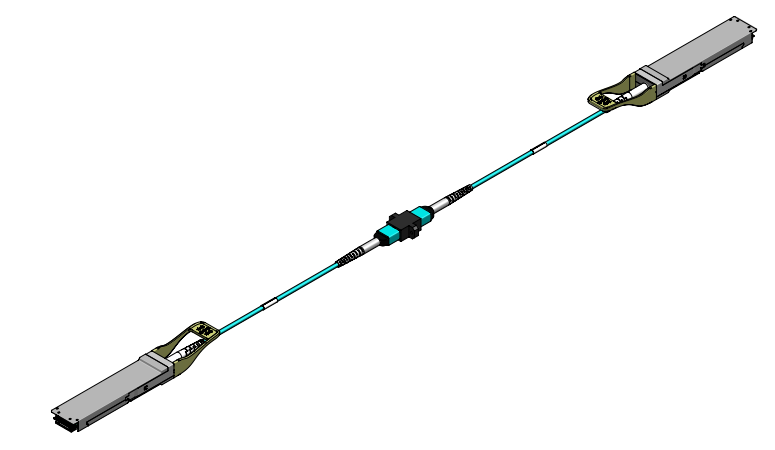

400G OSFP RHS Active Optical Cable for liquid cooling

The FIBERSTAMP’s 400GE OSFP RHS AOC is designed for use in 400G Ethernet/IB links over OM3/OM4/OM5 multimode fiber, both ends are OSFP RHS liquid immersion transceivers and connected by a single MPO connector receptacle, internal optics are covered and protected with special technique to prevent cooling liquid leakage, all of active optical cable assemblies are specially designed for liquid immersion environment. They are compliant with the OSFP MSA and IEEE 802.3db 400GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. It integrates 4 data lanes in each direction with 4*106.25Gb/s bandwidth.

Get A Quote

Description

Features

4 channelsfull-duplex transceiver modules per end
Data rate up to 106.25G per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Power consumption <8W/end
Hot Pluggable OSFP RHS form factor and Compliant with CMIS
Maximum link length of 60m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3V power supply voltage
RoHScompliant(lead free)
Single MPO12 connector receptacle
