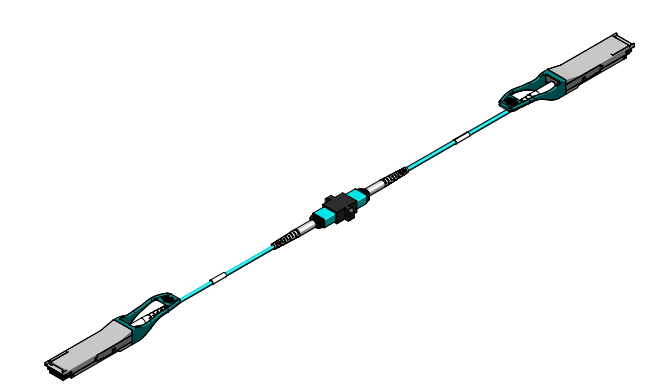

400G QSFP112 Active Optical Cable for liquid cooling

The FIBERSTAMP’s 400GE QSFP112 AOC is designed for use in 400G Ethernet/IB links over OM3/OM4/OM5 multimode fiber, both ends are QSFP112 liquid immersion transceivers and connected by a single MPO connector receptacle, internal optics are covered and protected with special technique to prevent cooling liquid leakage, all of active optical cable assemblies are specially designed for liquid immersion environment. They are compliant with the QSFP112 MSA and IEEE 802.3db 400GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. It integrates 4 data lanes in each direction with 4*106.25Gb/s bandwidth.

Get A Quote

Description

Features

4 channels full-duplex transceiver modules per end
Data rate up to 106.25G per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Power consumption <8W/end
Hot Pluggable QSFP112 form factor and Compliant with CMIS
Maximum link length of 60m on OM3 Multimode Fiber and 100m on OM4 with FEC
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3V power supply voltage
RoHS compliant(lead free)
Single MPO connector receptacle

Applications

- IEEE 802.3db 400GBASE-SR4 Ethernet (PAM4)
- The transceiver is designed for Ethernet, Telecom and Infiniband use cases.
- Especially design for liquid immersion environment
