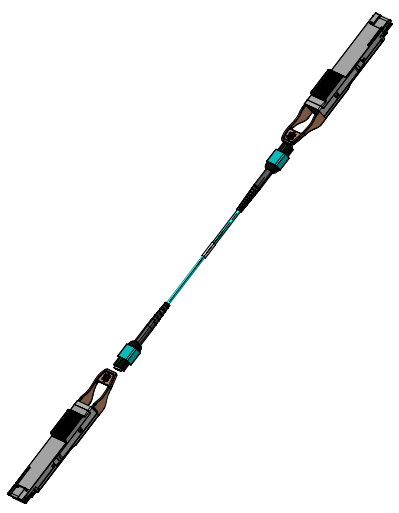

Immersion 800G QSFP-DD Active Optical Cable Optical for liquid cooling
FIBERSTAMP 800G QSFP-DD AOC is Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFPDD Double Density for 800 Gigabit Ethernet Applications. It integrates eight data lanes in each direction with 8×53.125GBd. Each lane can operate at 106.25Gbps up to 30 m using OM3 fiber or 50 m using OM4 fiber with FEC. Both ends of this product are 800G QSFP-DD liquid immersion transceivers , internal optics are covered and protected with special technique to prevent cooling liquid leakage, the both side optical interface is MPO16 and pluggable with MPO16 optical jumper.
Description
Features
- 8 channelsfull-duplex transceiver modules
- Transmission data rate up to 106.25G per channel
- 25Gbps PAM4 transmitter and PAM4 receiver
- Power consumption <14W per end
- Hot Pluggable QSFPDD form factor and Compliant with CMIS
- Maximum link length 100m on OM4 MMF with FEC
- Built-in digital diagnostic functions
- Operating case temperature 0°C to +70°C
- 3V power supply voltage
- RoHS compliant(lead free)
- Especially design for liquid immersion environment
- Pluggable MPO16 optical jumper
Applications
- IEEE 802.3db 2 x 400GBASE-SR4 Ethernet (PAM4)
- The transceiver is designed for Ethernet, Telecom and Infiniband use cases
- Especially design for liquid immersion environment
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
Related Products
-
-
AI&DC Immersible Liquid Cooling400G OSFP-RHS DR4 optical transceiver for immersion cooling
Read more -
-
AI&DC Immersible Liquid CoolingFIBERSTAMP 400G QSFP112 DR4 optical transceiver module for liquid cooling
Read more -
-
-
AI&DC Immersible Liquid CoolingImmersion 800G OSFP DR8 Optical Transceiver Module for liquid cooling
Read more -

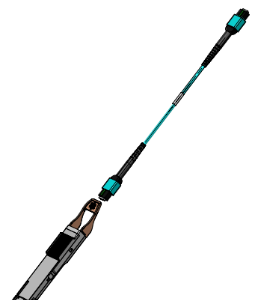

AI&DC Immersible Liquid CoolingImmersion 800G QSFP-DD SR8 Optical Transceiver Module for liquid cooling
