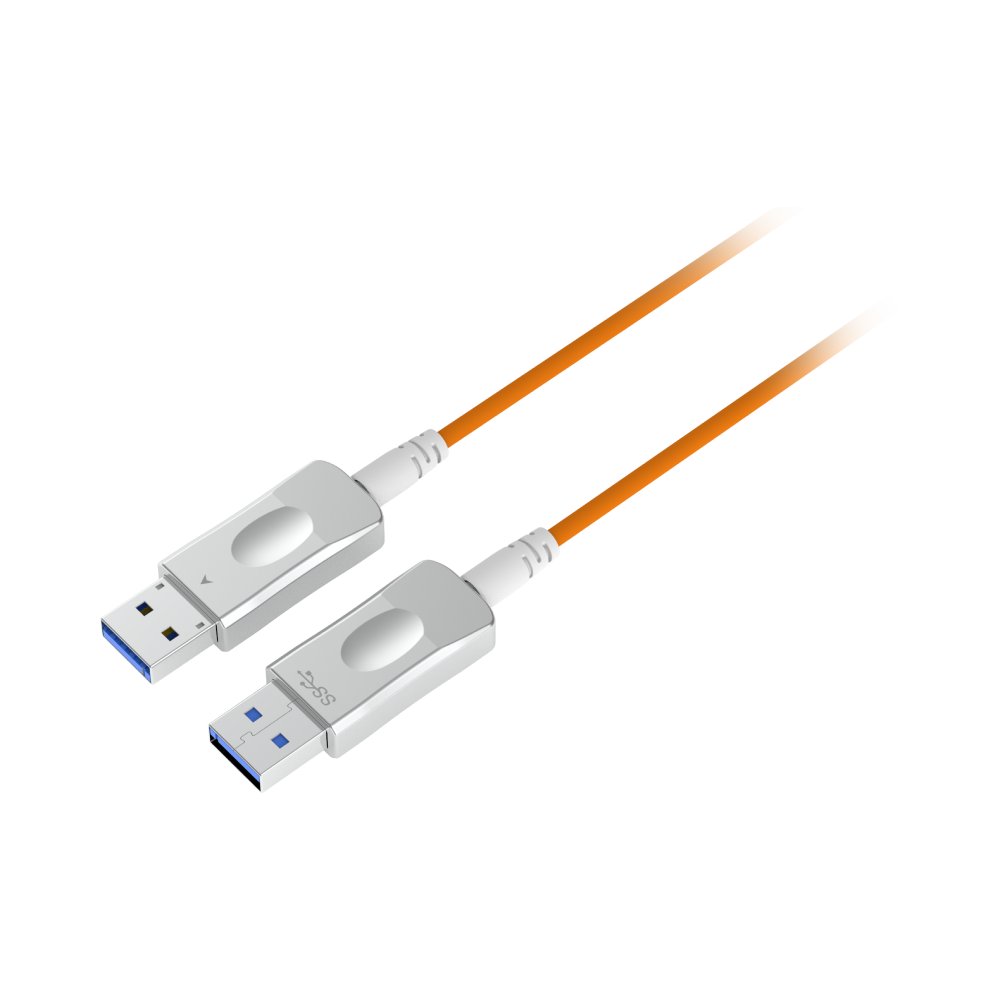

5Gbps USB 3.0 Type-A Optical Cable

FIBERSTAMP’s 5Gbps USB 3.0 Type-A Optical Cable is an active optical assembly featuring two USB 3.0 Type-A connectors along with an optical cable, designed to support USB 3.0 data transmission. Equipped with IC, VCSEL, and PD at each end, it seamlessly handles photoelectric and electro-optical conversions, enabling lossless 5Gbps data transmission up to 100m through multimode fiber.


  • The transmission distance of USB 3.0 super high speed signal can be extended up to 100m through OM2 multimode fiber
  • Supports self-powered USB 3.0 compliant devices
  • Transmission data rate up to 5Gbps
  • 850nm VCSEL Transmitter and PIN Photodetector Receiver
  • USB 3.0 SuperSpeed ​​thermal controller available
  • Supports all major operating systems including Windows, Mac OS and Linux
  • Hubs can be used to increase the number of devices
  • The maximum power consumption of each USB connector is less than 0.4W
  • Commercial grade operating temperature range from 0 to 70 degrees Celsius
  • Metal casing can shield electromagnetic radiation (EMI)
  • Comply with RoHS environmental protection standard (lead-free)


Product Type Description
FU-30xxxxC 5Gbps USB 3.0 Type-A optic cable, 1m~100m


  1. The fiber optic part of the Gigalight USB 3.0 fiber optic cable is not powered, so the upstream connector should be powered by the host side.
  2.  The host operating system needs to be compatible with the USB 3.0 standard. The USB 3.0 optical cable will not work when connected to a USB 2.0 or USB 1.1 host.
