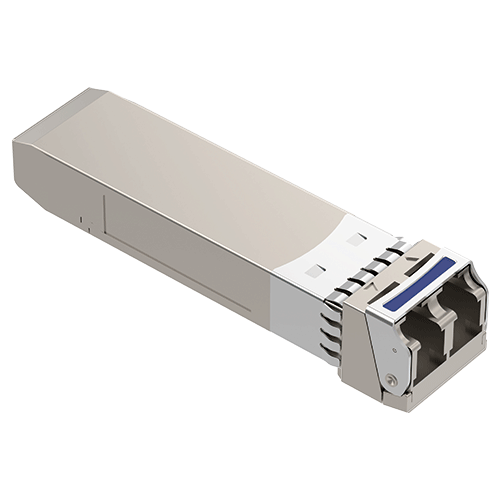

25G SFP28 LR DML 1310nm 10km SMF LC Optical Transceiver (Industrial Grade Optional)
FIBERSTAMP 25G SFP28 SR optical transceiver modules are used for short-distance interconnections between equipment within data centers or for 5G pre-transmission, and are compliant with the IEEE 802.3by 25GBASE-SR Ethernet transport protocol, with an optional dual-rate version compatible with CPRI Option 10 and 25GE. The series uses 1 pair of multimode fiber optic transmission with a central wavelength of 850nm for distances up to 70m (OM3) or 100m (OM4), with an optional industrial grade operating temperature range.
Description
- Full-duplex transceiver module in SFP28 hot-pluggable form factor
- Single channel 1310nm VCSEL and PIN
- Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-LR Ethernet transmission protocols
- Supports transmission rates up to 25.78125Gbps
- Compatible with CPRI Option 10 and 25G eCPRI transport protocols
- Downward compatible with CPRI Option 8 transport protocols
- Transmission over 1 pair of single-mode fiber up to 10km
- Dual LC optical connectors
- Commercial and industrial grade operating temperature ranges available
- Operates at a voltage of 3.3V
- Compliant with RoHS environmental standards (lead-free)
| P/N | Description |
|---|---|
| FBC-D2531K10C | 25GE/eCPRI SFP28 LR DML 1310nm 10km Optical Transceiver Module |
| FBC-D2531K10T | Industrial Grade 25GE/eCPRI SFP28 LR DML 1310nm 10km Optical Transceiver Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
