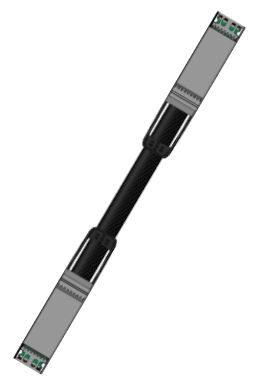

1.6T OSFP to 1.6T OSFP Active Copper Cable

FIBERSTAMP’s OSFP ACC(Active Copper Cable) assembly series product provide superior signal integrity performance and reliability, comparing to PCC and AOC, ACC is a re-drive solution which built-in linear equalizer to compensate transmission loss, it is an effective solution with low power, low latency, low cost to help high-speed data centers even AI high-computational applications.

The cable of this product connects data signals from each of the 16 pairs on the single OSFP end to the other OSFP end, each pair operates at data rates of up to 200Gb/s and can be adaptive downward compatibility. The product operates 3.3V power supply and comply with OSFP MSA and IEEE802.3dj ,it’s high performance & cost effective I/O solutions for LAN, HPC and SAN. The high speed cable assemblies meet and exceed 1.6T Ethernet, Infiniband XDR requirements for performance and reliability.

Get A Quote

Description

- Features
  - 1600Gb/s data rate
  - Support 8x 200Gb/s PAM4 modulation with 16 pairs
  - Hot-plug OSFP IHS(Integrated Heat Sink)form factor
  - Support up to 2m length
  - 3V power supply & typical power consumption 2.5W
  - Commercial case temperature range of 0°C to 70°C
  - I2C management by MCU
  Applications
  - Infiniband XDR
  - Switch / router / HBA
  - Enterprise network
  - Data Center Network
  - Data storage and communication industry
  STANDARDS COMPLIANCE
  - IEEE P802.3dj D2.0
  - OSFP MSA Rev 5.2
  - CMIS 5.0
  - RoHS
