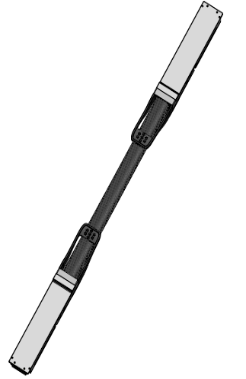

800G-CR8 (OSFP RHS) Direct Attach Cable
FIBERSTAMP’s FWU-800-XXM02C cable assemblies are effective alternatives to fiber optics. The cable connects data signals from each of the 16 pairs on the single OSFP RHS end to the other OSFP RHS end, each pair operates at data rates of up to 100Gb/s, each OSFP RHS port can be addressed by EEPROM to provide product information, which can be read or write by I2C interface.
FIBERSTAMP’s FWU-800-XXM02C cable assemblies is compliant with the OSFP-MSA and IEEE 802.3ck, it’s a high performance & cost effective I/O solutions for LAN, HPC and SAN. The high speed cable assemblies meet and exceed 800Gigabit Ethernet, InfiniBand EDR /HDR and temperature requirements for performance and reliability.
Description
- Features
- Hot-plug OSFP RHS form factor
- Support 8x 100/Gb/s PAM4 modulation
- Commercial case temperature rangeof 0°C to 70°C
- 26 AWG ~30 AWG support up to 2m length
- Contain EEPROM & programmable to customized
Applications
- Data storage and communication industry
- Switch / router / HBA
- Enterprise network
- Data Center Network
- Infiniband
STANDARDS COMPLIANCE
- IEEE 802.3ck D3.0
- OSFP MSA HW Rev 4.1
- ROHS
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Data Rate | |
| Protocol |
