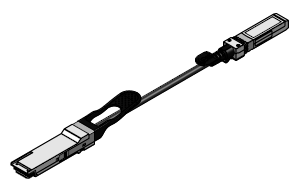

QSFP28 to 1XSFP28 DAC cable
FIBERSTAMP’s FWG-10030XXXC cable assembly is a customized passive copper cable. The cable connects data signals from each of the 1 pair on the single QSFP end to the SFP28 end, the pair operates at data rates of up to 25Gb/s, each end can be addressed by EEPROM to provide product information, which can be read or write by I2C interface.
Description
Features
- Up to 25.78125 Gbps data rate
- Up to 5 meter transmission
- Hot-pluggable SFP28 and QSFP28
- Compatible to SFF-8402 and SFF-8432
- Compatible to SFF-8665
- Compatible to IEEE 802.3bj
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Power consumption <0.1 W
- Temperature Range: 0~ 70 °C
- RoHS Compatible
Applications
- 25GE Ethernet
- Data storage and communication industry
- Switch / router / HBA
- Enterprise network
- SAN
- Data Center Network
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Data Rate | |
| Protocol |
