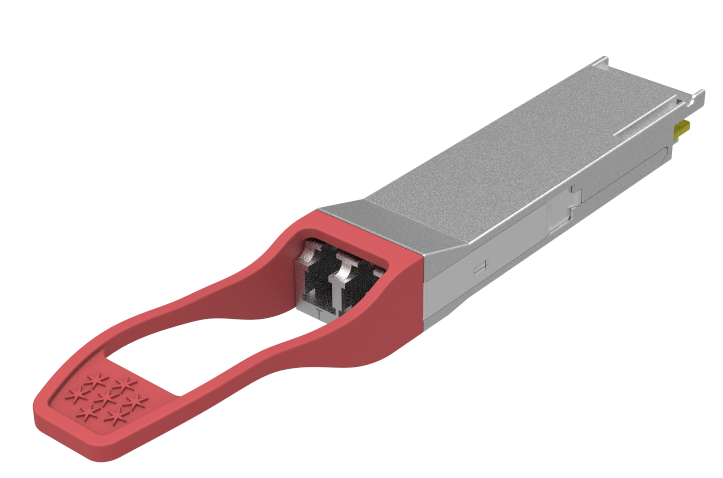

100G-ER1-30km QSFP28 Optical Transceiver
Description
The FIBERSTAMP 100G ER1-30km QSFP28 optical transceiver, 100G QSFP28 ER1-30(FBG-100ER-K30C) is designed for using in 100-Gigabit Ethernet links up to 30km over Single-Mode Fiber (SMF). It is compliant with the QSFP28 MSA ,100G Lambda 100G ER1-30 and CAUI-4(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface uses a 38-contact edge type connector. The optical interface uses a Duplex LC connector. The high performance cooled EML transmitter and high sensitivity APD receiver provide superior performance for 100Gigabit Ethernet applications up to 30km links.
Description
Features
- Compliantto 100G Lambda MSA 100G ER1-30
- Full-duplex transceiver module
- 78125Gbps NRZ electrical interface(CAUI-4)
- 25Gbps PAM4 based on a cooled EML TOSA transmitter
- 25Gbps PAM4 APD Receiver
- 4W maximum power dissipation
- Hot-pluggable QSFP28 form factor
- Maximum link length of 30km on G.652 SMF with KP-FEC
- Duplex LC receptacles
- Built-in digital diagnostic functions
- Operating case temperature range: 0 to 70°C
- Single 3.3V power supply
- RoHS compliant (lead free)
Applications
- 100G Lambda 100G ER1-30
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
