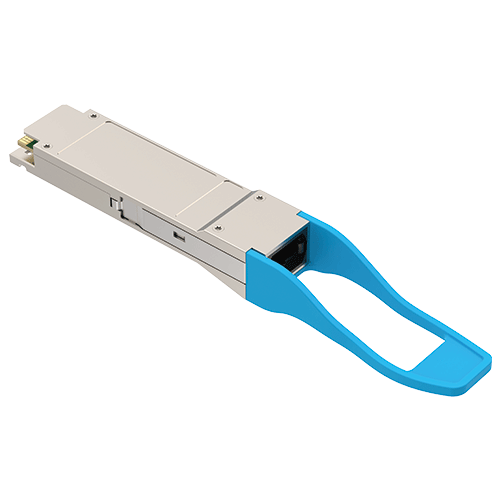

100G QSFP28 PSM DWDM4 C-BAND MPO Optical Transceiver
FIBERSTAMP FEG-100DxK80C is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 PSM4 C-BAND DWDM4 for 100G or 40 Ethernet Metro-Access over DWDM applications. It integrates four data lanes in each direction with 104 Gbps bandwidth. Each lane can operate at 26Gbps up to 80km over G.652 SMFwith external Mux/Demux, EDFA ,CD compensation.The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector.
Description
- 4 channels full-duplex transceiver modules
- Transmission data rate up to 26Gbps per channel
- 4 channels C-band EML DWDM
- Compliant to ITU-T 694.1
- 4 channels PIN photo detector array
- Internal CDR circuits on both receiver and transmitter
- channels
- Support CDR bypass
- Low power consumption <5W
- Hot Pluggable QSFP form factor
- Up to 80km reach for G.652 SMFwith external Mux/
- Demux,EDFA ,CD compensation
- Up to 10km reach for G.652 SMFwithout external CD compensation
- Single male MPO(APC 8-degree) connector receptacle
- Operating case temperature 0°C to +70°C
- 3V power supply voltage
- RoHS comp(lead free)
| P/N | Description |
|---|---|
| FEG-100DxK80C | 100Gb/s QSFP28 PSM4 C-band DWDM, MPO Connector, reach 80km on G.652 , 0~70℃ |
Additional Information
| Application | 5G Carrier Network, Access Network, Broadcast & Consumer Optics, Data Center, Metropolitan Area Network, Telecom |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
