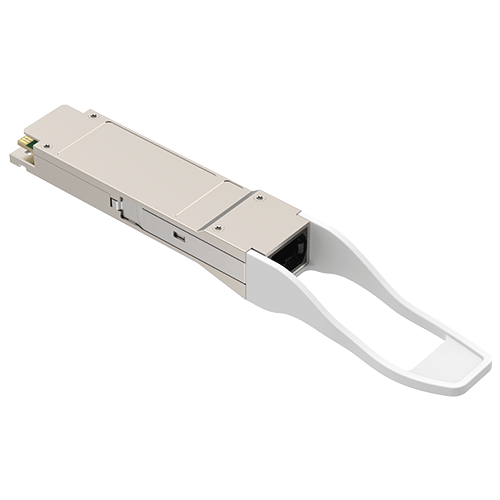

100G QSFP28 eER4 EML LWDM4 60km SMF LC Optical Transceiver
FIBERSTAMP 100G QSFP28 eER4 optical transceiver module is used for long-distance transmission in the field of data communication or telecom, and is compliant with 100G Ethernet transmission protocol, with optional dual-rate versions compatible with 100G Ethernet and OTN OTU4 transmission protocol. The product has a built-in pair of 4-channel LWDM MUX and DEMUX with center wavelengths of 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm, respectively, and uses a pair of single-mode fibers for transmission over distances up to 60km (without FEC on).
Description
- Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
- 4 channels LAN-WDM EML uncooled transmitter and APD ROSA
- Transmission rates of up to 25.78125Gbps or 27.95Gbps per channel
- Compliant with QSFP28 MSA, and 100GE Ethernet transport protocol
- Optional multi-rate versions compatible with 100G Ethernet and OTN OTU4
- Distance up to 60km (without FEC on) using 1 pair of single-mode fibers
- Power consumption less than 6w
- Dual LC optical connectors
- Commercial and industrial grade operating temperature range
- Supply voltage 3.3V
- RoHS compliant (lead-free)
| P/N | Description |
|---|---|
| FBG-112L4K60C | 100GE QSFP28 eER4 EML LWDM4 60km Optical Module |
Additional Information
| Application | 5G Carrier Network, Data Center, Metropolitan Area Network, Telecom |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
