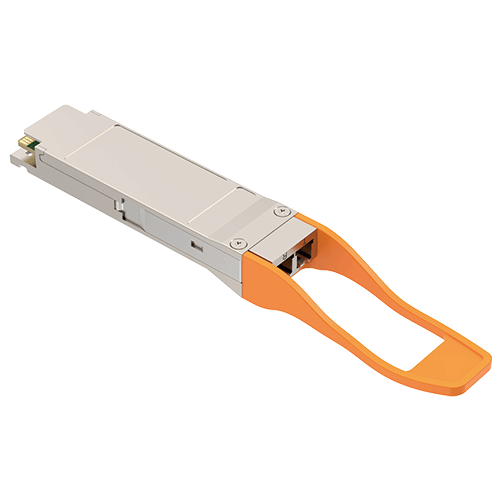

100G QSFP28 4WDM-40 DML CWDM4 30km/40km SMF LC Optical Transceiver
FIBERSTAMP 100G QSFP28 4WDM-40 optical transceiver is used for long distance interconnection in data centers and is compliant with 100G 4WDM-40 MSA specification. It has a built-in pair of 4-channel LWDM MUX and DEMUX with center wavelengths of 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm, respectively, and uses a pair of single-mode fibers for transmission over distances up to 30km (without FEC on) or 40km (with FEC on).
Description
- Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
- 4 channels LAN-WDM DML uncooled transmitter and APD ROSA
- Transmission rates of up to 25.78125Gbps per channel
- Compliant with QSFP28 MSA and 100G 4WDM-40 MSA Ethernet transport protocol
- Distance up to 30km (without FEC on) or 40km (with FEC on) using 1 pair of single-mode fibers
- Power consumption less than 3.8w
- Dual LC optical connectors
- Commercial and industrial grade operating temperature range
- Supply voltage 3.3V
- RoHS compliant (lead-free)
| P/N | Description |
|---|---|
| FBG-100L4K40C | 100GE QSFP28 4WDM-40 DML LWDM4 30km/40km Optical Module |
| FBG-100L4K40T | Industrial-grade 100GE QSFP28 4WDM-40 DML LWDM4 30km/40km Optical Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
