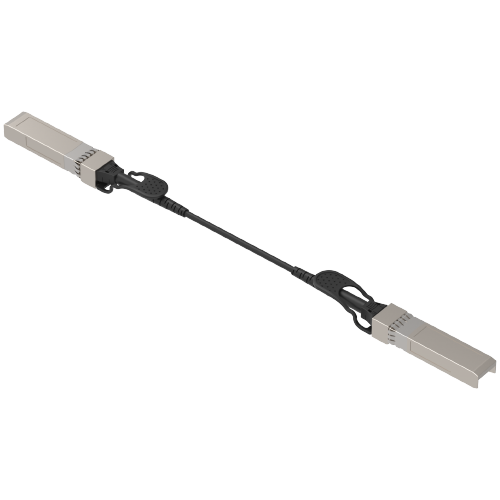

25G SFP28 Passive Directed Copper Cables, 25G NRZ, 5Meters(16ft)

FIBERSTAMP 25G SFP28 PCC passive direct copper cable is used for interconnection within or between racks within the data center, conforming to IEEE 802.3by 25GBASE-CR/25GBASE-CR-S Ethernet transmission protocol and compatible with the InfiniBand EDR transmission protocol. This series uses 2 pairs of coaxial cables to transmit 25G NRZ signals over distances of up to 2m (30AWG) or 5m (26AWG).

Facebook Linkedin Youtube Twitter

Description

  • The SFP28 hot-pluggable package module coaxial cable assembly is used
  • Single channel 25G NRZ modulation
  • The transmission rate can reach up to 25.78125Gbps
  • Complies with SFP28 MSA and IEEE 802.3by 25GBASE-CR/25GBASE-CR-S
  • Ethernet transport protocols
  • Compatible with the InfiniBand EDR transmission protocol
  • Cable length up to 2m (30AWG) or 5m (26AWG)
  • The bit error rate (BER) is better than 1E-15
  • Near-zero power consumption
  • I2C management interface
  • The supply voltage is 3.3V
  • LSZH (LSZH (LSZH Free Cable) cable outer material
  • LF (lead-free) HF (halogen-free) PCB
  • RoHS compliant (lead-free)
Product Model FWC-E25xxxxxC
Distance (m) 1-2 3-5
Cable Gauge (AWG) 30 26
