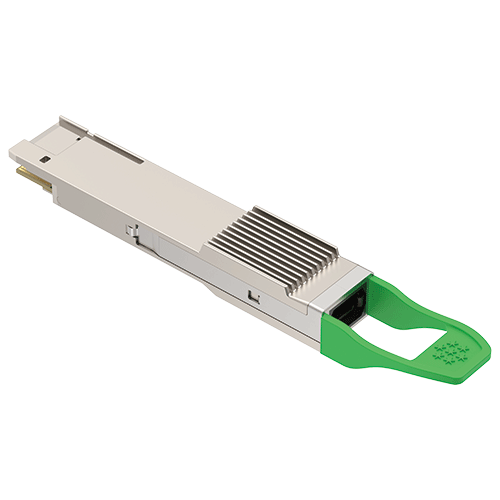

400G QSFP-DD 2×FR4 DML 2xCWDM4 2km SMF Dual Duplex LC Optical Transceiver
FIBERSTAMP 400G QSFP-DD 2×FR4 optical transceiver module is designed for medium-distance interconnect in data centers, compliant with the IEEE 802.3cn 400GBASE-2xFR4 Ethernet transmission protocol, supporting link transmission of up to 2km.
Description
- 8×53.125Gbps PAM4 400GAUI-8 electrical interface
- 8-channel DML-based transmitter (2xFR4)
- Power consumption <9W
- Hot-pluggable QSFP-DD form factor
- Single-mode fiber transmission distance of up to 2km
- Dual Duplex LC optical ports
- Built-in digital diagnostic functions
- I2C management interface
- Compliant with CMIS 4.0
- Operating temperature range: 0℃ to +70℃
- Power supply voltage: 3.3V
- Compliant with RoHS standard (lead-free)
Product Model | Product Description |
---|---|
FTL-400C4K02C | 400GE QSFP-DD 2×FR4 DML 2km optical transceiver module with DSP |
Additional Information
Data Rate | |
---|---|
Application | |
Form Factor | |
Media Type | |
Interface | |
Product Type | |
Protocol | |
Reach | |
Wavelength |
Related Products
-
Optical Transceivers
50G SFP56 ER EML 1310nm 40km Optical Transceiver (Industrial Grade Optional)
Read more -
Optical Transceivers

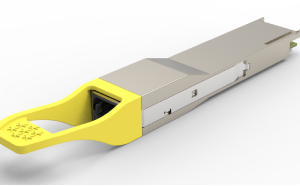

SiPh 400G QSFP112 DR4/DR4+ 1310nm 500m/2km SMF MPO Optical Transceiver
