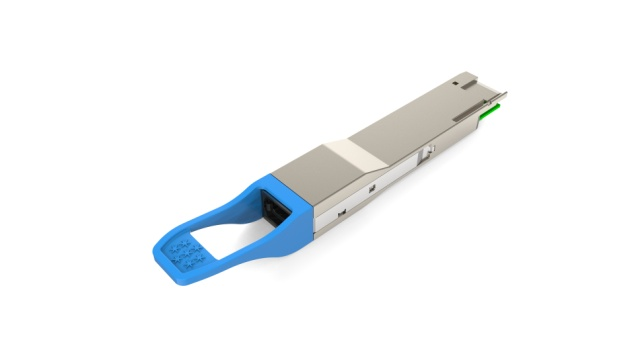

200G QSFP DD PSM8 20km Optical Transceiver MPO24 / MPO16

FIBERSTAMP 200G QSFP DD PSM8 20km Optical Transceiver is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 20km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16/ 24 fiber MTP (MPO) connector. This module incorporates FIBERSTAMP Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

Get A Quote

Description

Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if required
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 20km reach for G.652 SMF
Single male MPO16/MPO24(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3V power supply voltage
RoHS compliant (lead free)

Applications

- 2×100G Ethernet links
- Infiniband DDR/EDR
- Datacenter and Enterprise networking

P/N & Data Sheet	Description
FEL-200P8K02C16	200GE QSFP-DD PSM8 DML 1310nm 20km MPO16 Optical Modules
FEL-200P8K10C24	200GE QSFP-DD PSM8 DML 1310nm 20km MPO24 Optical Modules

Additional Information

Application	5G Carrier Network
Form Factor	QSFP-DD
Media Type	SMF
Interface	MPO16, MPO24
Product Type	Pluggable Optical Modules
Protocol	CPRI/eCPRI, Ethernet, InfiniBand
Reach	20km
Wavelength	1310nm
