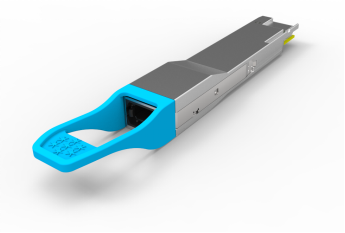

400G QSFP-DD PSM O-band DWDM4 10km Silicon Photonics Transceiver Module
The FIBERSTAMP 400G QSFP-DD PSM O-band DWDM4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP 28 PSM4 for 400G or 200G Ethernet Metro-Access over DWDM applications and it is compliant to QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The silicon photonics transceiver is based on a new state-of-the-art silicon photonics (SiPh) platform. It uses SiPh chips that integrate a number of active and passive optoelectronic components, 3D packaging technology and industry-leading 7nm DSP chips. It is a cost-effective and lower power consumption solution for 400GBASE data center. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Description
Features
- QSFP-DD MSA and CMIS compliant
- Compliantto 802.3bs 400GBASE-DR4
- 125Gbit/s PAM4 electrical interface(400GAUI-8)
- 25Gbps(53.125GBd PAM4)Optics architecture
- Power consumption <11W
- Maximum link length of 10km G.652 SMF with KP-FEC
- Up to 30 km when equipped with an external SOA
- MPO-12 receptacles
- Built-in digital diagnostic functions
- Operating case temperature 0°C to +70°C
- 3V power supply voltage
- RoHS compliant(lead free)
Applications
- IEEE 802.3bs 400GBASE-DR4
- Data center network
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach |
