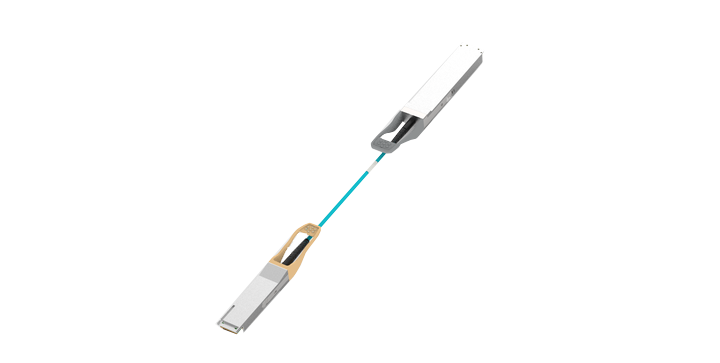

400G QSFP112 to 400G OSFP-RHS AOC Optical Transceiver Module
FIBERSTAMP’s FYLU-400MxxxC MMF Active Optical Cable is used in 4 X 100Gigabit Ethernet links over OM3/OM4 multimode fiber. The OSFP-RHS port has integrate 4 independent transmit and receive channels, each capable of 106.25Gb/s PAM4 operation for an aggregate data rate of 425Gb/s, while the QSFP112 port has integrate 4 independent transmit and receive channels and uses QSFP112 MSA，which provides increased port density and total system cost savings for switches and routers, etc. It is compliant with IEEE 802.3db, IEEE 802.3ck and OSFP&QSFP112 MSA.
Description
Features
- Hot-plug OSFP-RHS and QSFP112 form factor
- Transmission data rate up to 106.25G per channel
- 25Gbps PAM4 transmitter and PAM4 receiver
- 4 channels 850nm VCSEL array(both End)
- 4 channels PIN photo detector array(both End)
- Power consumption <8W
- Compliant to OSFP&QSFP112 MSA and CMIS4.0
- Maximum link length of 30m on OM3 Multimode Fiber (MMF)and 50m on OM4 MMF with FEC
- Built-in digital diagnostic functions
- Operating case temperature 0°C to +70°C
- 3V power supply voltage
- RoHS compliant(lead free)
Applications
- IEEE 802.3db 400GBASE-VR4 Ethernet (PAM4)
- The transceiver is designed for Ethernet, Telecom and Infiniband use cases.
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Protocol | |
| Reach | |
| Wavelength |
