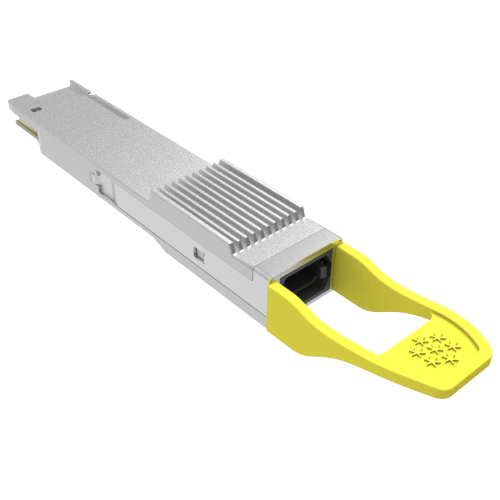

SiPh 800G QSFP DR8 1310nm 500m SMF MPO Optical Transceiver

FIBERSTAMP’s 800G QSFP-DD DR8 silicon photonics hot-pluggable optical modules are engineered with silicon photonics integration for 800GBASE-DR8 Ethernet links within data centers. Utilizing 100G PAM4 and 8-way single-mode parallel technology, these modules support transmission distances of up to 500m.

Description

  • 8-channel full-duplex transceiver integrated module in QSFP-DD hot-pluggable package
  • Data rate up to 850Gbps
  • Compliant with QSFP MSA, CMIS 4.0 and 800G Ethernet transport protocols
  • Transmission using single fiber at distances up to DR8 500m/ DR8+ 2km/ DR8++ 10km (with FEC on)
  • MPO16/APC or Dual MP012/APC optical interfaces
  • Power consumption less than 18W
  • Supports CMIS version 4.0 protocol
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)
P/N Description
FUL-800P4M50C SiPh 800G QSFP-DD DR8 1310nm 500m Optical Transceiver

Additional Information

Application

Form Factor

Media Type

Interface

Product Type

Protocol

,

Reach

Wavelength
