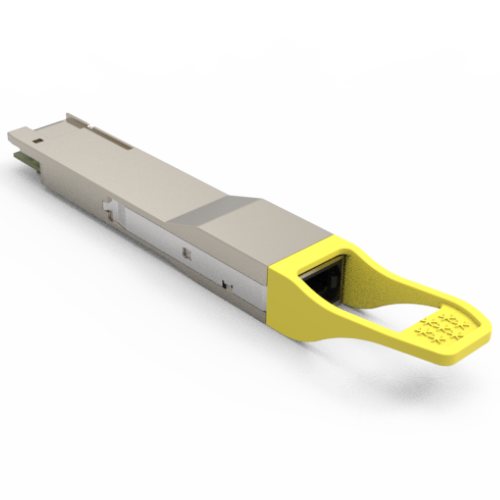

SiPh 400G QSFP112 DR4/DR4+ 1310nm 500m/2km SMF MPO Optical Transceiver
FIBERSTAMP Silicon Photonics 400G QSFP112 DR4/DR4+ optical transceiver module adopts 100G PAM4 and silicon photonics integration technology, which is widely used in 400GBASE Ethernet links, and the transmission distance can reach up to 500m/2km through single-mode fiber with KP-FEC on. It is a cost-effective and lower power consumption solution for 400GBASE data center.
Description
- Hot-pluggable QSFP-DD form factor
- 4-channel full-duplex transceiver integrated module
- 4×106.25Gbps(53.125GBd PAM4)electrical interface
- 4×106.25Gbps(53.125GBd PAM4)optics architecture
- Compliant with QSFP112 MSA and IEEE 802.3cu protocol
- Transmission distance up to 500m/2km over single-mode optical fiber (KP-FEC on)
- MPO12 optical interface
- Built-in digital diagnostic functions
- Power consumption less than 10w
- Commercial operating temperature range
- Supply voltage 3.3V
- RoHS compliant (lead-free)
| P/N & Data Sheet | Description |
|---|---|
| FUJ-400P4M50C | 400G QSFP112 DR4 500m SiPh Optical Module |
| FUJ-400P4K02C | 400G QSFP112 DR4+ 2km SiPh Optical Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
