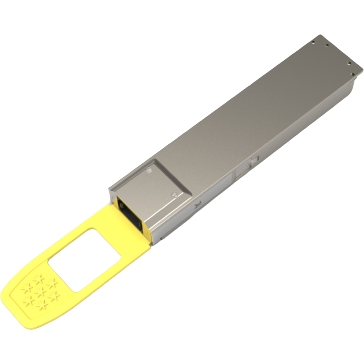

SiPh 400G OSFP-RHS DR4 500m Silicon Photonics Transceiver Module
FIBERSTAMP FUR-400P4M50C is a high-performance transceiver module designed for 500-meter optical communication applications. It is fully compliant with OSFP MSA and the IEEE 802.3bs standard.
This silicon photonics (SiPh) transceiver is built on a state-of-the-art SiPh platform, incorporating both active and passive optoelectronic components. It utilizes advanced 3D packaging technology and industry-leading 7nm DSP chips, delivering a cost-effective, low-power solution for 400GBASE data center applications.
Engineered for reliability, the module is designed to perform in harsh operating environments, withstanding variations in temperature, humidity, and EMI interference. It provides high functionality and integration, with easy management and control via a two-wire serial interface.
Description
Features
▪ OSFP MSA and CMIS compliant ▪ Compliant to 802.3bs
▪ 4×106.25Gbps(53.125GBd PAM4)electrical interface
▪ 4×106.25Gbps(53.125GBd PAM4)optics architecture
▪ Power consumption <10W
▪ Maximum link length of 500m G.652 SMF with KP-FEC
▪ MPO-12 receptacles
▪ Built-in digital diagnostic functions
▪ Operating case temperature 0°C to +70°C
▪ 3.3V power supply voltage
▪ RoHS compliant(lead free)
Applications
▪ Ethernet and Telecom
▪ Infiniband
| P/N & Data Sheet | Description |
|---|---|
| FUR-400P4M50C | 400G OSFP-RHS DR4 500m Silicon Photonics Transceiver Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
