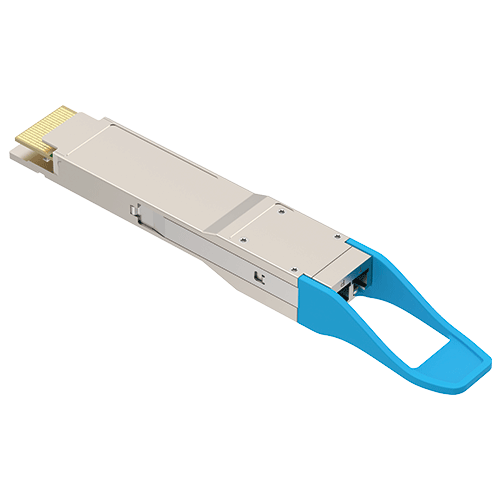

SiPh 400G QSFP-DD LR4 CWDM4 10km SMF LC Optical Transceiver
FIBERSTAMP’s silicon-based 400G QSFP-DD LR4 optical transceiver is tailored for mid-to-long-range data center connections. It aligns with 100G Lambda MSA 400G-LR4-10 standards and IEEE 802.3cu 400GBASE-LR4 Ethernet protocol. This module integrates a 4-channel CWDM MUX and DEMUX with central wavelengths at 1271nm, 1291nm, 1311nm, and 1331nm, enabling distances of up to 10km (FEC enabled) through a pair of single-mode optical fibers
- An integrated full-duplex transceiver module employing QSFP-DD hot-pluggable form factor.
- Transmitters and receivers designed with a 4-channel CWDM silicon optics.
- Each channel supports a maximum transmission rate of 106.25Gbps (100G PAM4).
- Compliant with QSFP-DD MSA and 100G Lambda MSA 400G-LR4-10 specifications.
- Compatible with IEEE 802.3cu 400GBASE-LR4 Ethernet transmission protocols.
- Utilizes a pair of single-mode optical fibers, reaching distances up to 10km (FEC enabled).
- Power consumption less than 11W.
- Dual LC optical ports.
- Operates within a commercial-grade temperature range.
- Operating voltage of 3.3V.
- Complies with RoHS environmental standards (lead-free).
|P/N & Data Sheet
|SiPh 400G QSFP-DD LR4 CWDM4 10km Optical Transceiver
