As AI computing infrastructure continues to scale, optical interconnect architectures are evolving to address increasingly demanding requirements for power efficiency, link performance, interoperability, and network manageability.
Among the architectures gaining attention, Linear-Drive Pluggable Optics (LPO) and Hybrid Semi-DSP take fundamentally different approaches to signal processing and link optimization.
Rather than viewing them simply as competing technologies, it is more useful to understand how their respective architectures address different requirements across AI computing networks.
I. Understanding the Fundamental Architectures
LPO (Linear-Drive Pluggable Optics)
LPO uses a direct-drive architecture in which the transmitter laser is driven directly by the electrical driver, while the receiver uses a linear TIA. The DSP is completely eliminated from the optical module.
Signal equalization, compensation, and retiming are handled entirely by the high-performance SerDes within the switch ASIC. The primary objective is to minimize optical module power consumption and maximize energy efficiency.
Hybrid Semi-DSP
Hybrid Architecture Diagram
A Hybrid Semi-DSP solution integrates a lightweight, streamlined DSP into the optical module while retaining basic digital equalization, signal compensation, and configurable tuning capabilities on the Tx/Rx side.
Rather than implementing the complex long-distance dispersion and nonlinear compensation algorithms found in conventional full-DSP solutions, the Hybrid architecture seeks to balance power consumption, transmission performance, and controllability. It also enables open parameter tuning through the host system.
FIBERSTAMP’s Hybrid optical solutions are designed to combine the low-power advantages of LPO with the flexibility, link margin, diagnostics, and configurability associated with DSP-based optics.
II. Core Comparison from an AI Computing Networking Perspective
1. Power Consumption
LPO
LPO has a clear advantage in power consumption. By eliminating the DSP, it removes the associated DSP power overhead and can achieve very low module power consumption.
This makes LPO particularly attractive for short-reach links in high-density AI racks, where minimizing power consumption and total cost of ownership (TCO) is a major priority.
Hybrid
Hybrid consumes more power than LPO but significantly less than conventional full-DSP optics. Through dynamic algorithm enable/disable control, power consumption can be adjusted according to actual link conditions.
Key trade-off
LPO focuses on fixed ultra-low power consumption, while Hybrid provides greater flexibility to balance power and performance according to operating conditions.
2. Link Margin and Transmission Distance
LPO
With LPO, link compensation relies primarily on the SerDes within the switch, while the optical module itself has limited signal recovery and compensation capabilities.
As a result, LPO can be more sensitive to fiber quality, connector cleanliness, and temperature fluctuations.
Typical applications include:
In-rack and short rack-to-rack links
Links generally up to 100 m
Newly deployed AI clusters with high-quality cabling
As cabling ages, patching stages increase, or link distances become longer, the available link margin can decrease more rapidly.
Hybrid
The integrated lightweight DSP provides local signal recovery and compensation, offering greater link margin and stronger tolerance to link degradation.
Typical applications include:
- 100–500 m data-center interconnects
- Mixed or legacy cabling environments
- Short- and medium-reach DCI
- Existing data center upgrades
3. System Dependency and Interoperability
LPO
Because the optical module does not perform complete signal recovery, the module and switch SerDes must be jointly tuned and optimized.
Different switch vendors may have significant differences in SerDes performance and implementation, which can make cross-vendor interoperability and mixed-brand deployment more challenging.
As a result, LPO is particularly suited to vertically integrated and highly customized AI clusters.
Hybrid
The module performs basic signal recovery independently while retaining the plug-and-play characteristics of conventional optical transceivers.
This reduces the optical module’s dependence on a specific switch ASIC implementation and facilitates multi-vendor equipment deployment.
As a result, Hybrid is more suitable for open and heterogeneous AI computing networks.
4. Operations, Monitoring, and Fault Diagnosis
LPO
Without a DSP, LPO generally provides basic optical monitoring, such as Tx/Rx optical power. Advanced information, including eye diagrams, error statistics, and dispersion-related parameters, is more limited.
When bit errors occur, it can be more difficult to quickly determine whether the root cause lies in the fiber, optical components, connectors, or switch.
In large-scale AI clusters, this can increase troubleshooting complexity and operational costs.
Hybrid
A lightweight DSP can retain digital diagnostic capabilities, including real-time error monitoring, signal-quality analysis, and link-degradation warnings.
This enables clearer fault isolation and can be advantageous for large-scale deployments that require more sophisticated network operations and maintenance.

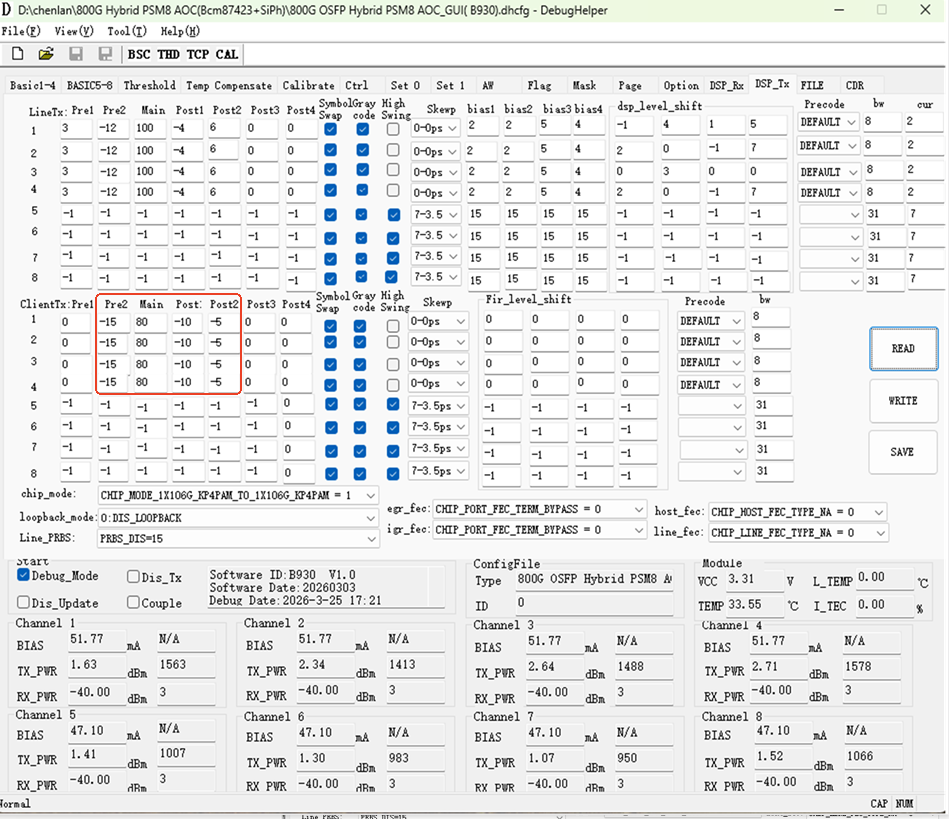

Hybrid solutions can also support host-side configurable equalization and tuning strategies, enabling more granular management and optimization of AI computing networks.
5. Supply Chain and Mass-Production Cost
LPO
The simplified architecture eliminates the DSP, theoretically enabling the lowest BOM cost.
However, LPO places greater performance requirements on optical components, lasers, and photodetectors. As data rates continue to increase, particularly toward 224G PAM4, maintaining production yield can become increasingly challenging.
In this architecture, a greater portion of system-level value shifts toward switch SerDes and ASIC vendors.
Hybrid
The use of a lightweight Semi-DSP increases BOM cost compared with pure LPO.
However, the value of the solution can remain within the optical module through algorithm optimization, adaptive tuning, and implementation know-how.
The architecture also provides greater tolerance to optical and manufacturing variations, resulting in a wider production window.
6. Business Application Scenarios
In-Rack / Very Short-Reach Connections in AI Training Clusters → LPO
Extremely short distances, new cabling, highly integrated architectures, and a strong focus on maximum power efficiency make LPO attractive for densely packed AI computing environments.
Rack-to-Rack, POD-to-POD, Legacy Data Center Upgrades, and SMB/Enterprise AI Computing Centers → Hybrid
More complex cabling, longer link distances, multi-vendor equipment, and the need for network control, diagnostics, and open tuning capabilities make Hybrid a more flexible option.
Short- and Medium-Reach DCI → Hybrid
LPO can become less practical as distance and link complexity increase.
Hybrid can adapt to different fiber and link conditions through open parameter tuning, making it a potential cost-effective option for short- and medium-reach DCI applications.
III. Overall Industry Positioning
LPO: Ultra-Low-Power Short-Reach AI Computing Solution
Key value proposition:
- Ultra-low power consumption
- Highly customized architecture
- Short-reach applications
- Newly deployed high-density AI clusters
LPO achieves maximum power efficiency by trading off some link margin, interoperability, and diagnostic flexibility.
Hybrid: Open, Configurable, and Flexible AI Computing Solution
Key value proposition:
- Configurable power consumption
- Stronger link margin
- Host-side tuning
- Enhanced diagnostics
- Multi-vendor compatibility
- Support for legacy network environments
Rather than pursuing the absolute minimum power consumption, Hybrid delivers greater flexibility, operational control, and long-term value across a wider range of AI networking scenarios.
FIBERSTAMP’s Hybrid portfolio is positioned to bridge the gap between pure LPO and conventional full-DSP optics, providing an open and configurable architecture for next-generation AI computing networks.
IV. The Broader Trend in AI Computing Networking
LPO and Hybrid should not be viewed simply as replacement technologies. They are complementary architectures designed to address different layers and requirements within AI networking infrastructure.
At the innermost layer of the AI rack, where link distances are extremely short and power efficiency is the overriding priority, LPO can be used to minimize power consumption.
For POD-to-POD, rack-to-rack, data-center-wide, and short- to medium-reach DCI connectivity, Hybrid solutions can provide greater link margin, interoperability, diagnostics, and configuration flexibility.
Together, LPO and Hybrid can form a layered and complementary optical interconnect architecture for AI computing—balancing power efficiency, performance, deployment flexibility, and long-term network operability.
