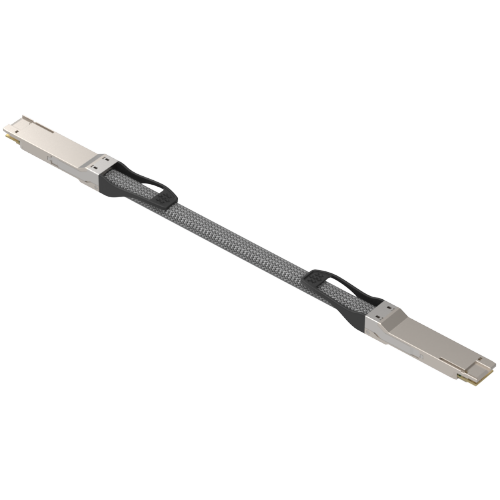

400G QSFP56-DD Active Directed Copper Cables, 8x50G PAM4, 7Meters(23ft)
FIBERSTAMP 400G QSFP56-DD ACC active direct attach copper cable is designed for intra-rack or inter-rack interconnects in data centers. It complies with ETC 400GBASE-CR8 Ethernet transmission protocol, while also being compatible with InfiniBand HDR transmission protocol. This series of products utilizes 16 pairs of coaxial cables to transmit 8x 50G PAM4 signals, with a maximum reach of 7m.
Description
-
- Utilizes QSFP-DD hot-pluggable module and coaxial cable assembly
- 8-channel 50G PAM4 modulation
- Maximum per-channel data rate of 53.125Gbps
- Complies with QSFP-DD MSA, CMIS, and ETC 400GBASE-CR8 Ethernet transmission protocols
- Compatible with InfiniBand HDR transmission protocol
- Customizable cable length up to 7m
- Bit Error Rate (BER) better than 1E-15
- Near-zero power consumption
- I2C management interface
- Power supply voltage of 3.3V
- LSZH (Low Smoke Zero Halogen) cable jacket material
- LF (Lead-Free) HF (Halogen-Free) PCB
- Complies with RoHS environmental standards (Lead-Free)
Additional Information
Application | |
---|---|
Form Factor | |
Product Type | |
Protocol |
