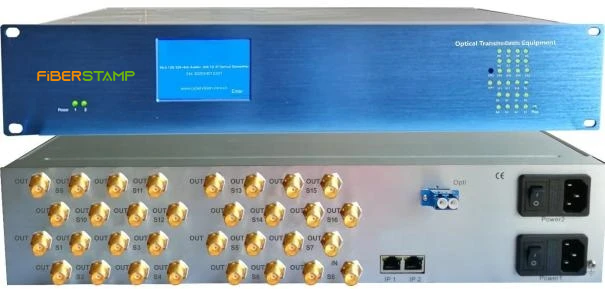

FIBERSTAMP 16-Channel 12G-SDI + 2-Channel IP HD Digital Video Managed Optical Transceiver

The FIBERSTAMP 16-channel 12G-SDI optical transceiver consists of a Transmitter and a Receiver interconnected over a two-fiber link. It transports 16 channels of 12G-SDI ultra-HD 4K video together with 2 independent Gigabit Ethernet signals. Each 12G-SDI input is equipped with a multi-rate cable equalizer and provides one 12G-SDI loop-through output per channel, while the output stage incorporates a built-in distribution amplifier with two 12G-SDI outputs per channel.

Get A Quote

Description

Product Features

Transmits 16 channels of 12G-SDI ultra-HD video and 2 independent Gigabit
Ethernet channels over a single fiber
SDI signals automatically adapt to 12G-SDI, 3G-SDI, HD-SDI and SD-SDI
LCD screen displaysthe operating status of the optical transceiver:

Optical interface type
Laser operating wavelength
Transmit/receive optical power
Optical module operating temperature and main-board supply voltages from the dual power supplies
Input/output status of each channel

Front-panel LED indicators for SDI input / output signals, optical signals and power
IP data transmission supports IEEE 802.3, IEEE 802.3U, IEEE 802.3X and IEEE 802.1d
IP data transmission supports 10/100/1000 Mbps auto-negotiation
Network management function with SNMP and web-based monitoring
Dual independent power supplies with redundant backup

Key Management Features

The management unit is built on an ARM Cortex-M3 CPU, providing web-based device status viewing and configuration.
The system also supports local and remote connections for basic configuration and monitoring of network parameters.
The network port supports 10M / 100M operation with auto-negotiation, and automatically adapts to crossover or straight-through Ethernet cables.
Network boot configuration supports both static IP and DHCP.
The system supports the Network Time Protocol (NTP) and can update the time automatically over the network.
