Leading Video Transmission Technology
FIBERSTAMP has introduced a variety of high-speed broadcast-grade video optical transceiver kit solutions that aim to enable long-distance single-mode fiber transmission of multiple uncompressed SDI signals to meet different scenarios in the upcoming 4K/8K UHD remote transmission era.
SDI Extenders
3G/12G/48G SDI video optical extenders are used to extend the reach of 4K/8K video transmission between SDI Source and Sink devices over fiber. The transmission distance can be extended up to 40km with FBIERSTAMP ‘s 3G/12G SDI dual-transmitter/receiver optical modules.
Video Presentation - 48G SDI QSFP+ Solutions
Product Brochure
HD Video & Broadcast Product Brochure
Design various video optical solutions for UHD video transmission segmented markets for a better smooth and vivid visual experience in commercial use.
Download the product brochure to learn more about the FIBERSTAMP video optical modules and scale up your video network.
Ordering Information
| Product | Data Rates | Optical Ports | Electrical Ports | Extender Type | P/N |
|---|---|---|---|---|---|
 | 48G SDI | 1x QSFP+ | 8x BNC | Transceiver | FE1QP-4V12F |
 | 4x 12G-SDI | 1x FC | 4x BNC | Transmitter | FE1FC-4V12T |
 | 4x 12G-SDI | 1x FC | 4x BNC | Receiver | FE1FC-4V12R |

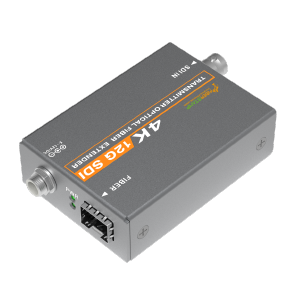

 | 12G-SDI | SFP+ | 1x BNC | Transmitter | FE1SP-1V12T |

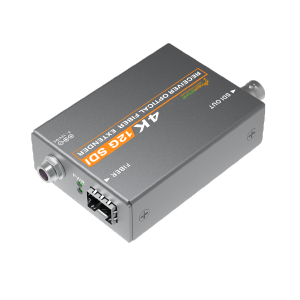

 | 12G-SDI | SFP+ | 1x BNC | Receiver | FE1SP-1V12R |

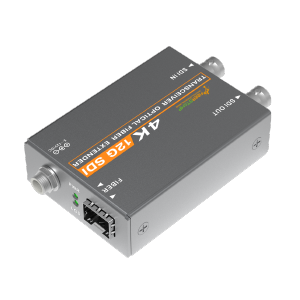

 | 12G-SDI | SFP+ | 2x BNC | Transceiver | FE1SP-1V12F |

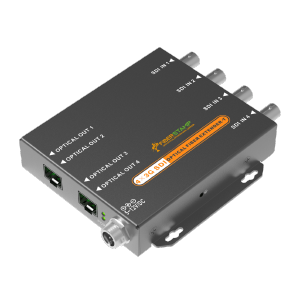

 | 4x 3G-SDI | SFP | 4x BNC | Transmitter | FE2SP-4V3GT |
 | 4x 3G-SDI | SFP | 4x BNC | Receiver | FE2SP-4V3GR |
 | 16CH x 3G-SDI | FC | 16 x BNC | 2U Chassis | FBV3G-C45K20N |
