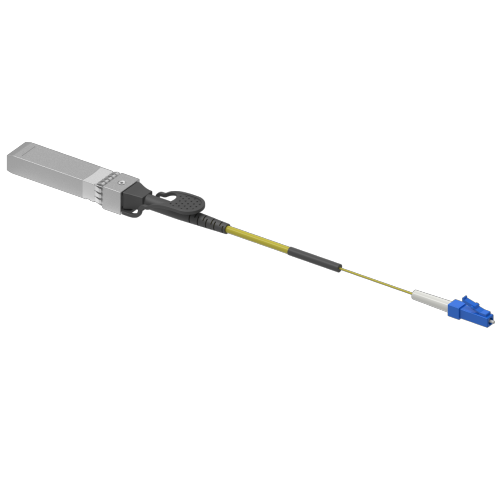

Immersible 25G SFP28 BiDi LR 10km Optical Modules

FIBERSTAMP s 25G SFP28 BiDi LR optical modules, adapted for submerged liquid-cooled data centers, enable transmission over single-mode fiber for distances of up to 10km.

Facebook Linkedin Youtube Twitter

Description

  • Hot-pluggable SFP28 transceiver modules with LC pigtail
  • Full duplex transceiver module
  • 1270/1310nm DFB laser and PIN photodetector
  • Compliant with SFP28 MSA and IEEE 802.3cc 25GBASE-LR Ethernet standard
  • Transmission distance up to 10km over single-mode optical fiber
  • Data rate up to 25.78125Gbps
  • Maximum power consumption less than 1W
  • Case operating temperature range: 0°C to 70°C
  • Single LC pigtail
  • Single 3.3V power supply
  • Built-in digital diagnostic functionality
  • RoHS compliant (lead free)
P/N Description
FRC-M2523K10xxx Immersible 25G SFP28 BiDi LR 10km Optical Modules

Additional Information

Application

Form Factor

Media Type

Interface

Product Type

Protocol

Reach

Wavelength
