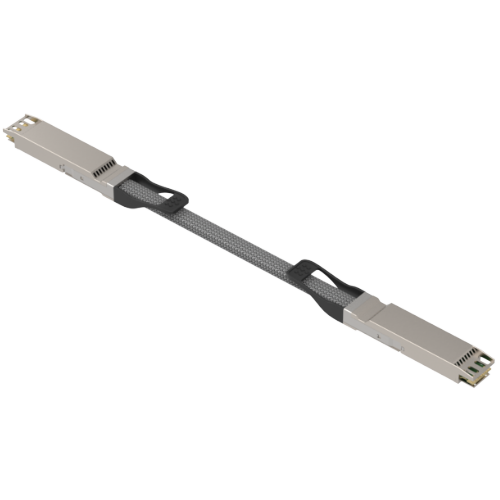

800G OSFP Passive Copper Cable 8x100G PAM4 2 Meters(6.6ft)
FIBERSTAMP 800G OSFP PCC passive direct attach copper cable is designed for intra-rack or inter-rack interconnects in data centers. It complies with IEEE 802.3ck 800GBASE-CR8 Ethernet transmission protocols, while also being compatible with InfiniBand HDR transmission protocol. This series of products utilizes 16 pairs of coaxial cables to transmit 8 times 100G PAM4 signals, with a maximum reach of 1m (30AWG) or 2m (26AWG).
Description
- Utilizes OSFP hot-pluggable module and coaxial cable assembly
- 8-channel 100G PAM4 modulation
- Maximum per-channel data rate of 106.25Gbps
- Complies with OSFP MSA, CMIS, and ETC 800GBASE-CR8 Ethernet transmission protocols
- Compatible with InfiniBand HDR transmission protocol
- Customizable cable length up to 1m (30AWG) or 2m (26AWG)
- Bit Error Rate (BER) better than 1E-15
- Near-zero power consumption
- I2C management interface
- Power supply voltage of 3.3V
- LSZH (Low Smoke Zero Halogen) cable jacket material
- LF (Lead-Free) HF (Halogen-Free) PCB
- Complies with RoHS environmental standards (Lead-Free)
Product Model | FWL2J-800xxxxxC | |
---|---|---|
Distance (Meter) | 0.5-1 | 2 |
Cable Gauge (AWG) | 30/26 | 26 |
Additional Information
Application | |
---|---|
Form Factor | |
Data Rate | |
Protocol |
