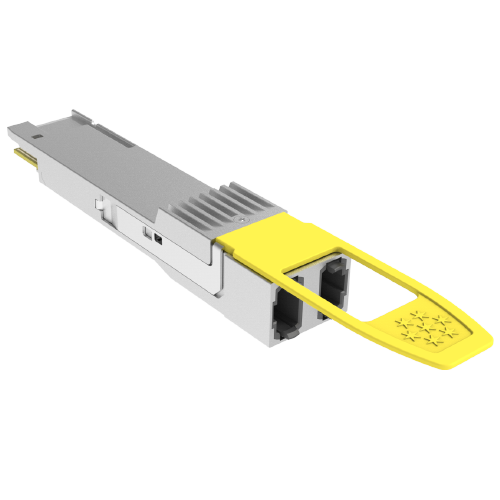

SiPh 800G OSFP DR8 1310nm 500m SMF MPO Optical Transceiver
FIBERSTAMP 800G OSFP DR8 Silicon Optical Module is a hot-pluggable optical transceiver module based on silicon photonics integration technology, designed for data center 800GBASE-DR8 Ethernet links, with 100G PAM4 and 8-way single-mode parallel technology, and supports 500m maximum transmission distance.
Description
- 8-channel full-duplex transceiver integrated module in OSFP hot-pluggable package
- Data rate up to 850Gbps
- Compliant with QSFP MSA, CMIS 4.0 and 800G Ethernet transport protocols
- Transmission using single fiber at distances up to 500m (with FEC on)
- Dual MPO-12 optical interfaces
- Power consumption less than 18.5W
- Supports CMIS version 4.0 protocol
- Commercial grade operating temperature range
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FUU-800P4M50C | SiPh 800G OSFP DR8 1310nm 500m Optical Transceiver |
Application

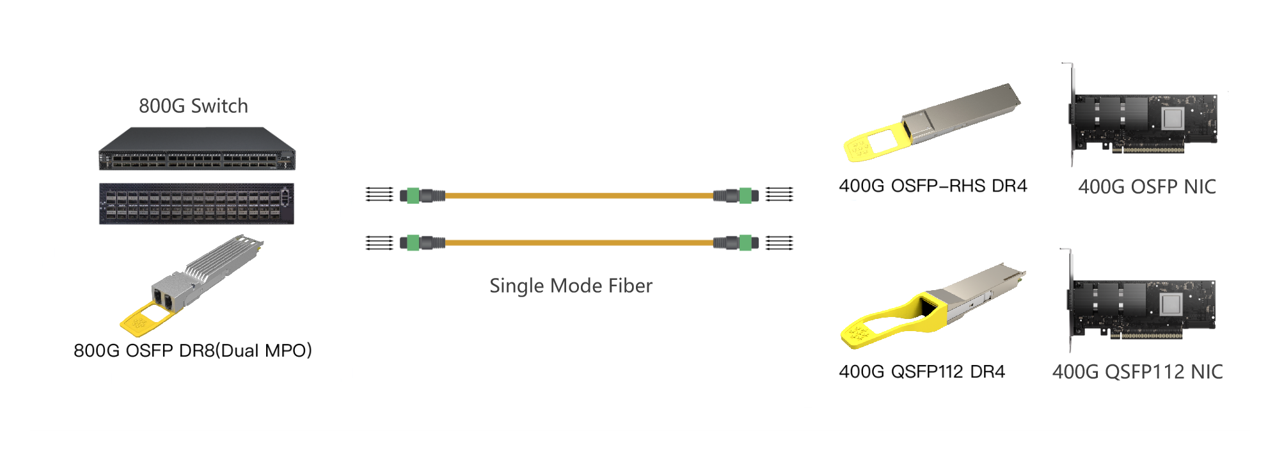

SiPh 800G OSFP DR8 to SiPh 400G OSFP-RHS DR4/400G QSFP112 DR4 Breakout Solution
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
