800G OSFP SR8 VCSEL 850nm 100m MMF MPO Optical Transceiver
FIBERSTAMP 800G OSFP-DD SR8 is a hot-pluggable optical transceiver module designed for 800G SR8 Ethernet links in data centers. It adopts 100G PAM4 and VCSEL technology and can realize 800G data exchange within 100m.
Description
- 8-channel full-duplex transceiver integrated module in OSFP-DD hot-pluggable form factor
- 8-channel 850nm VCSEL and PIN
- Receive channel and transmit channel built-in DSP chip
- The transmission rate per channel can reach up to 100Gbps (100G PAM4)
- Compliant with OSFP-DD MSA and 800GBASE-SR8 Ethernet transmission protocol
- Compatible with IEEE 802.3cd 200GBASE-SR4/100GBASE-SR2/50GBASE-SR Ethernet transmission protocol
- Using 8 pairs of parallel multimode optical fiber transmission, the distance can reach up to 70m (OM3 MMF) or 100m (OM4 MMF)
- 2xMPO12 optical interface
- Commercial grade operating temperature range
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FUU-800S8M10C | 800GE OSFP SR8 VCSEL 850nm 100m Optical Transceiver Modules（2×MPO12） |
Application

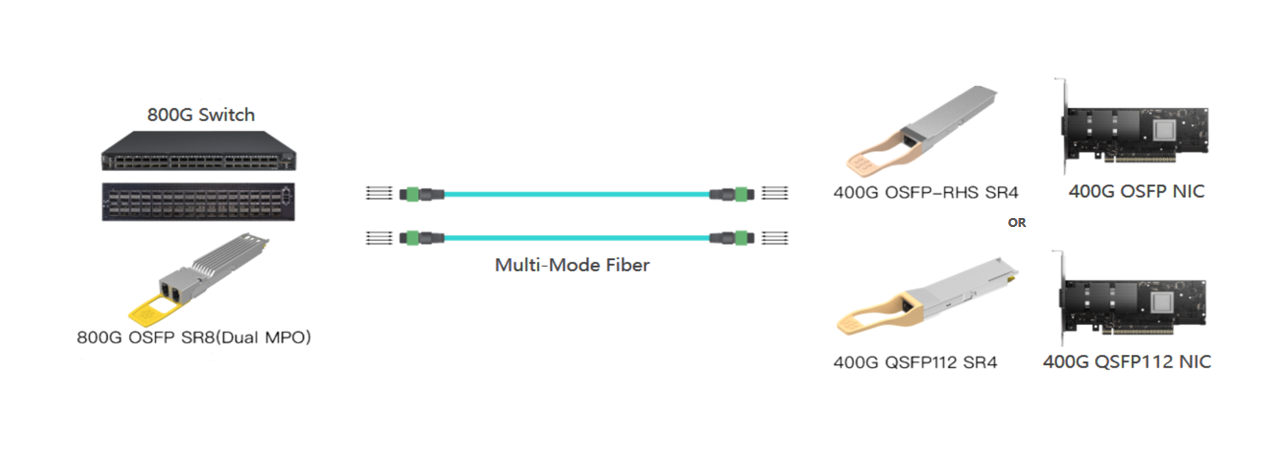

800G OSFP SR8 to 2x400G OSFP-RHS SR4/400G QSFP112 SR4 Breakout Solution
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
