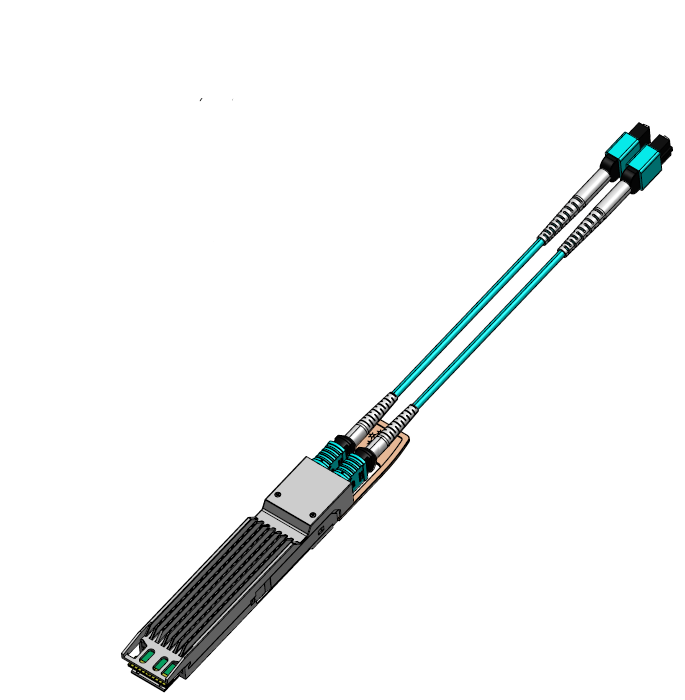

Immersion 800G OSFP SR8 850nm 100m(328ft) Optical Transceivers

FIBERSTAMP 800G OSFP SR8 immersible cooling optical transceiver is designed for immersive data center 800GBASE-SR8 Ethernet links, employing 100G PAM4 and VCSEL technology. With FEC on, it can achieve 800Gbps data interconnect within 100m using 8 pairs of multimode optical fibers.

Facebook Linkedin Youtube Twitter

Description

  • Utilizes hot-pluggable OSFP form factor
  • 8-channel full-duplex integrated transceiver module
  • Speed of up to 800Gbps
  • Compliant with OSFP MSA and IEEE 802.3cm 800GBASE-SR8 Ethernet standards
  • 8-channel 100Gb/s PAM4 850nm VCSEL transmitters and PIN receivers
  • Embedded DSP chips in both receive and transmit channels
  • With FEC enabled, can achieve a maximum transmission distance of up to 100m over multimode fibers
  • MPO pigtail fiber
  • Commercial-grade operating temperature range from 0 to 60 degrees Celsius
  • Power supply voltage of 3.3V
  • Compliant with RoHS environmental standards (lead-free)

Additional Information

Application

Form Factor

Media Type

Interface

Product Type

Protocol

Reach

Wavelength
