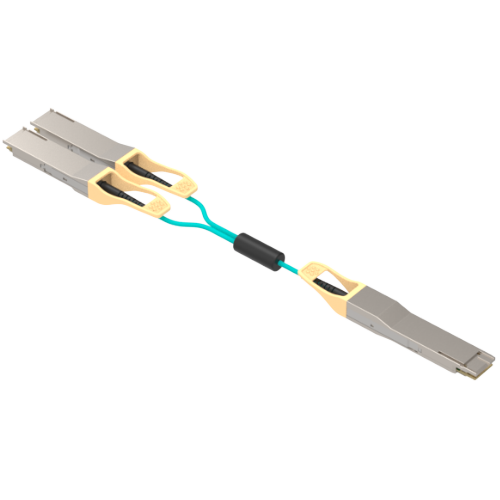

200G QSFP56 To 2x 100G QSFP56 Active Optical Cables 4x50G PAM4, 100Meters(328ft)

FIBERSTAMP 200G QSFP56 to 2x 100G QSFP56 AOC active optical cable is used for short-distance branch interconnection between internal devices in the data center, conforms to IEEE 802.3cd 200GBASE-SR4 Ethernet transmission protocol, and is also compatible with IEEE 802.3cd 100GBASE-SR2 Ethernet and InfiniBand HDR100 transmission protocol. This series of products uses 4 pairs of parallel multimode optical fiber transmission, and the distance can reach up to 70m (OM3) or 100m (OM4/OM5).

Description

  • An active optical cable assembly integrating one 200G QSFP56 SR4 and two 100G QSFP56 SR2 optical transceiver modules at both ends
  • Each side contains 4 channels of 850nm VCSEL and PIN
  • The transmission rate per channel can reach up to 53.125Gbps
  • Compliant with QSFP56 MSA, CMIS and IEEE 802.3cd 200G
  • BASE-SR4 Ethernet transmission protocol
  • Compatible with IEEE 802.3cd 100GBASE-SR2 Ethernet and InfiniBand HDR100 transmission protocol
  • Using 4 pairs of parallel multimode optical fiber transmission, the distance can reach up to 70m (OM3) or 100m
  • (OM4/OM5)
  • Power consumption less than 5W (200G QSFP56 SR4 optical module) or 4.5W (each 100G QSFP56 SR2 optical module)
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)
P/N Description
FYH2H-200MxxxC 200G QSFP56 to 2x 100G QSFP56 AOC

Additional Information

Application

Form Factor

Media Type

Product Type

Protocol

,

Reach

Wavelength
