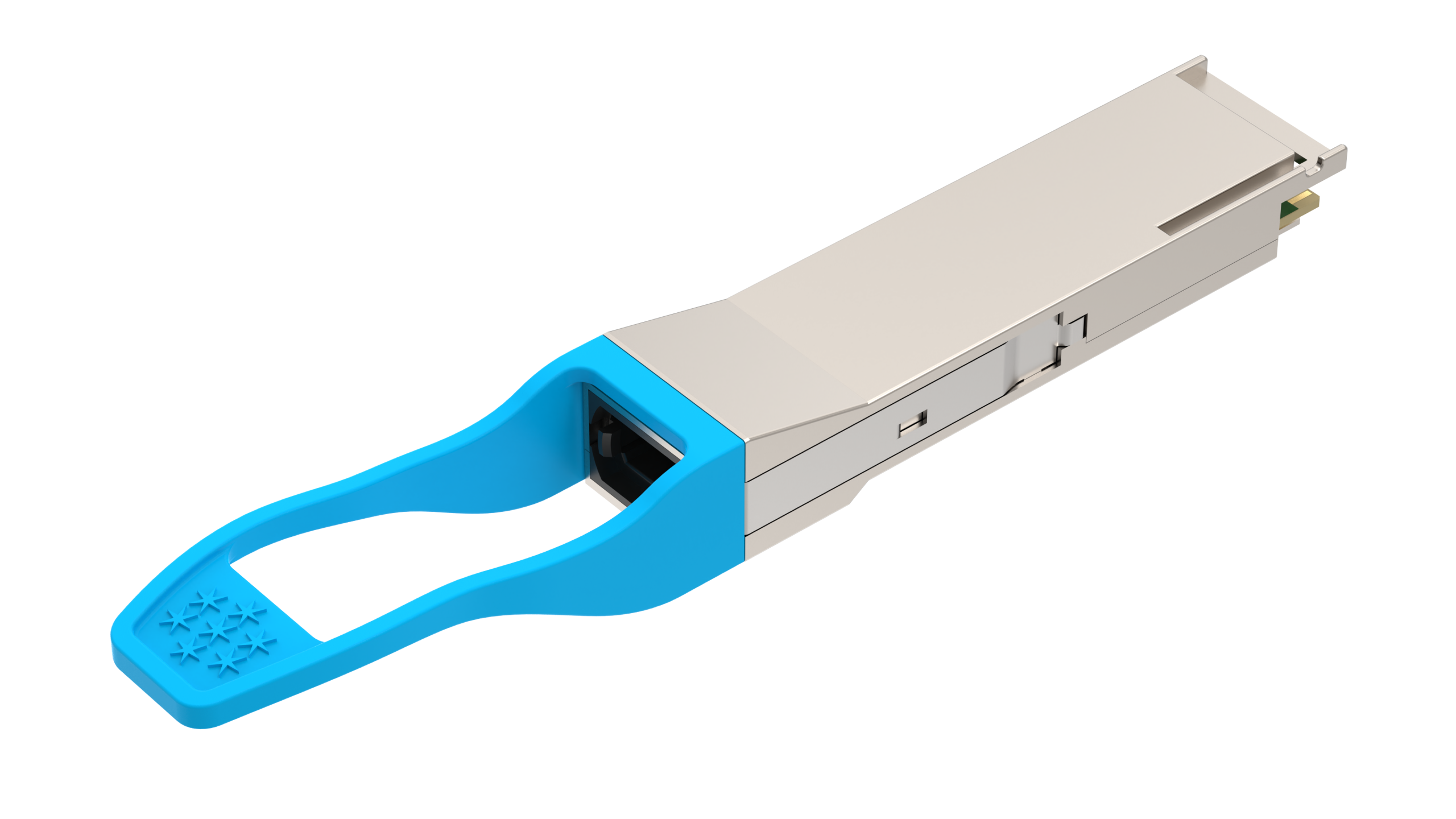

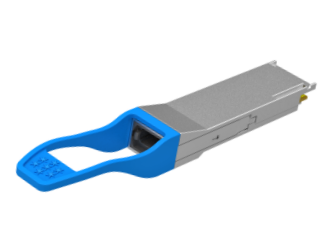

Color ZR+100G QSFP28 PSM DWDM4 C-band Optical Transceiver Module
The Color ZR+ 100G QSFP28 PSM DWDM4 is a non-coherent DWDM optical transceiver optimized for cost-effective data center interconnect and metro transport networks. Operating in the C-band with EML-based transmitters, it supports multi-channel DWDM transmission using a simplified direct-detect architecture. The module enables reliable short- to medium-reach DWDM links while maintaining low power consumption and compact QSFP28 form factor.
Description
Features
- 4 channelsfull-duplex transceiver modules
- Transmission data rate up to 26Gbps per channel
- 4 channels C-band EML DWDM
- Compliant to ITU-T 694.1
- 4 channels PIN photo detector array
- Internal CDR circuits on both receiver and transmitter channels
- Support CDR bypass
- Low power consumption <5W
- Hot Pluggable QSFP form factor

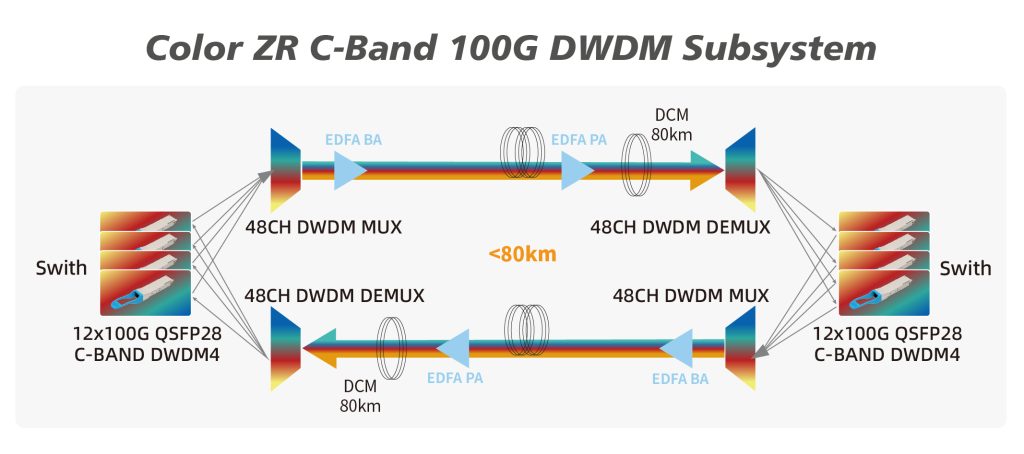

- Up to 120km reach for G.652 SMF with external Mux/Demux , EDFA ,CD compensation
- Up to 10km reach for G.652 SMF without external CD compensation
- Single male MPO(APC 8-degree) connector receptacle
- Operating case temperature 0°C to +70°C
- 3V power supply voltage
- RoHS compliant(lead free)
Applications
- 100G Ethernet Metro-Access over DWDM
- P to P Access Network
