Comprehensive Open Optical Network

FIBERSTAMP’s comprehensive suite of solutions for the Open Optical Network System. Our lineup includes Passive Wavelength Division Multiplexing (WDM) systems, Non-coherent DWDM subsystems enhancing transmission quality and extending distances, and Coherent DCI BOX offerings enabling ultra-large-capacity service access and seamless expansion. These solutions cater to metropolitan, regional, and DWDM networks, optimizing transmission while conserving optical fiber resources. Ideal for long-haul Data Center Interconnection (DCI) and telecom transmission networks, our technologies support up to 800G/1.6T/3.2T ultra-long-haul service transmission, reshaping the landscape of open optical networks.

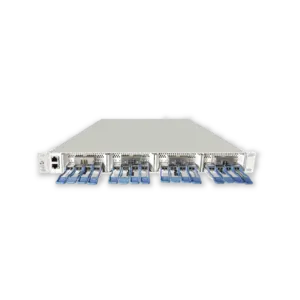

Coherent DCI BOX

Passive WDM Subsystem

Non-Coherent DWDM Subsystem

Passive WDM Subsystem

FIBERSTAMP launched a series of Passive Wavelength Division Multiplexing (WDM) system to improve the transmission quality and extend the transmission distance of DWDM systems. It is suitable for metropolitan area networks, regional networks, and DWDM networks, while also saving optical fiber resources.

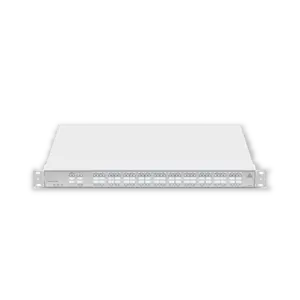

48CH 100GHz DWDM MUX DEMUX

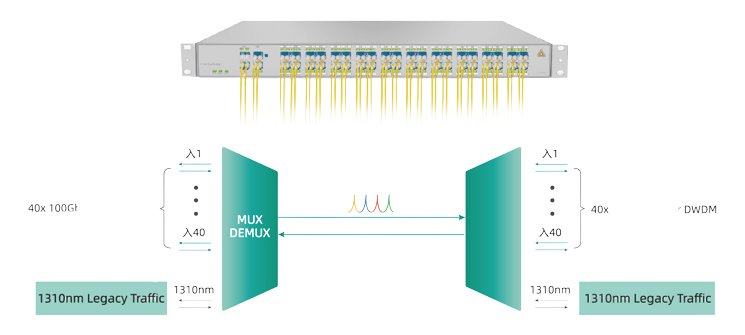

48-channel DWDM 100GHz dual-fiber multiplexer/demultiplexer, a compact powerhouse transforming optical networking. This 1U rack enclosure solution, featuring LC/UPC duplex connectors and 1% monitoring ports for seamless troubleshooting, boasts low insertion loss, elevating transmission quality and expanding DWDM system reach. Compliant with Telcordia standards and RoHS6, it's a game-changer for metropolitan, regional, and DWDM networks, optimizing performance while conserving vital fiber optic resources.

Parameter	Unit	Specification
Passband Type	/	Gaussian	Flat-top
Grade	/	Type
Number of Channels	/	48
Channel Spacing	GHz	100
Wavelength Accuracy	nm	0.05
1dB Passband	nm	≥0.2	≥0.38
3dB Passband	nm	≥0.4	≥0.58
Insertion Loss	dB	≤4.0	≤6.0
Ripple	dB	≤1.5	≤0.5
Flatness	dB	≤1.5	≤1.5
Adjacent Crosstalk	dB	≥29	≥23
Non-Adjacent Crosstalk	dB	≥35	≥29
Total Crosstalk	dB	≥21
Polarization Dependent Loss (PDL)	dB	≤0.5
PMD	ps	≤0.5
Dispersion	ps/nm	±20
Return Loss	dB	≥40
Operating Temperature	°C	-5 to 75
Storage Temperature	°C	-40 to +85
Enclosure	mm	48324544 (19-inch rack)

64CH 75GHz DWDM MUX DEMUX

64CH DWDM 75GHz dual-fiber mux/demux in a 2U rack enclosure, a robust solution redefining optical networking. Featuring LC/UPC duplex connectors and 1% monitoring ports for seamless troubleshooting, this unit's low insertion loss significantly enhances transmission quality and extends DWDM system reach. With an ITU G.196.1 75GHz ITU grid and compliance to Telcordia standards and RoHS6, this technology, based on non-heated AWG DWDM module tech, is tailored for metropolitan, regional, and DWDM networks. Efficiently preserve vital fiber resources while delivering superior performance.

Parameter	Unit	Specification
Passband Type	/	Flat-top
Grade	/	Type
Channel Count	/	64
Channel Spacing	GHz	75
Wavelength Accuracy	nm	±0.05
1dB Passband	nm	≥0.3
3dB Passband	nm	≥0.55
Insertion Loss	dB	≤6.0
Ripple	dB	≤0.5
Flatness	dB	≤1.5
Adjacent Crosstalk	dB	≥8
Non-Adjacent Crosstalk	dB	≥30
Total Crosstalk	dB	≥5
Polarization Dependent Loss (PDL)	dB	≤0.7
PMD	ps	≤1.0
Dispersion	ps/nm	±35
Return Loss	dB	≥40
Operating Temperature	°C	-5 to 65
Storage Temperature	°C	-40 to +85
Enclosure	mm	48424588 (19-inch 2U rack)

96CH 50GHz DWDM MUX DEMUX

96-channel DWDM 50GHz dual-fiber mux/demux 2U rack-mount system, a pinnacle in optical networking excellence. Engineered with LC/UPC duplex connectors and 1% monitoring ports for streamlined troubleshooting, this system's low insertion loss elevates transmission quality and extends DWDM system reach. With an ITU G.694.1 50GHz ITU grid and compliance with Telcordia standards and RoHS6, this technology, leveraging non-blocking AWG DWDM module tech, is tailored for metropolitan area networks (MANs), regional networks, and DWDM networks. Experience enhanced performance while conserving crucial fiber resources.

Parameter	Unit	Specification
Passband Type	/	Flat-top
Grade	/	Type
Channel Count	/	64
Channel Spacing	GHz	75
Wavelength Accuracy	nm	±0.05
1dB Passband	nm	≥0.3
3dB Passband	nm	≥0.55
Insertion Loss	dB	≤6.0
Ripple	dB	≤0.5
Flatness	dB	≤1.5
Adjacent Crosstalk	dB	≥8
Non-Adjacent Crosstalk	dB	≥30
Total Crosstalk	dB	≥5
Polarization Dependent Loss (PDL)	dB	≤0.7
PMD	ps	≤1.0
Dispersion	ps/nm	±35
Return Loss	dB	≥40
Operating Temperature	°C	-5 to 65
Storage Temperature	°C	-40 to +85
Enclosure	mm	48424588 (19-inch 2U rack)
