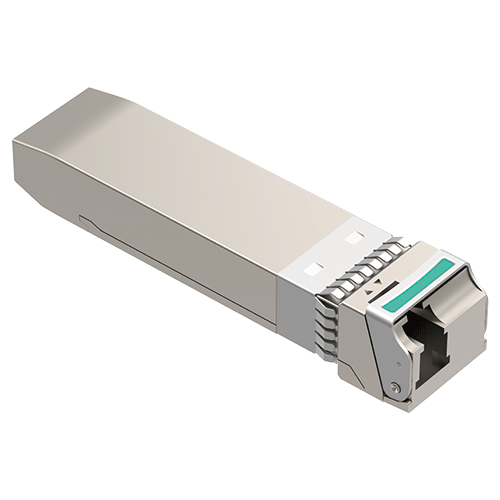

50G SFP56 BiDi EML 10km/30km Single-fiber SMF LC Bidirectional Transceiver Module (Industrial Grade Optional)
FIBERSTAMP 50G SFP56 BiDi single-fiber bidirectional optical transceiver module is used for 5G fronthaul, conforms to 50G Ethernet transmission protocol, and is also compatible with 50G eCPRI transmission protocol. This series of products uses a single single-mode optical fiber for transmission, the center wavelength is 1270nm/1330nm, the distance can reach up to 10km or 30km, and it supports industrial-grade operating temperature range.
Description
- Full-duplex transceiver integrated module in SFP56 hot-pluggable package
- Single channel BiDi 1270nm/1330nm EML and PIN/APD
- Transmission rate up to 53.125Gbps (50G PAM4)
- Compliant with SFP56 MSA and 50G Ethernet transmission protocol
- Compatible with 50G eCPRI transmission protocol
- Using a single single-mode optical fiber transmission, the distance can reach up to 10km or 30km
- Power consumption is less than 3W
- Single LC optical interface
- Available in commercial and industrial temperature ranges
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FCD-E502733K10T | Industrial grade 50GE/eCPRI SFP56 BR10-U EML+PIN 1270nm/1330nm 10km single fiber bidirectional optical transceiver module |
| FCD-E503327K10T | Industrial grade 50GE/eCPRI SFP56 BR10-D EML+PIN 1330nm/1270nm 10km single fiber bidirectional optical transceiver module |
| FCD-E502733K30T | Industrial grade 50GE/eCPRI SFP56 BR30-U EML+APD 1270nm/1330nm 30km single fiber bidirectional optical transceiver module |
| FCD-E503327K30T | Industrial grade 50GE/eCPRI SFP56 BR30-D EML+APD 1330nm/1270nm 30km single fiber bidirectional optical transceiver module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
