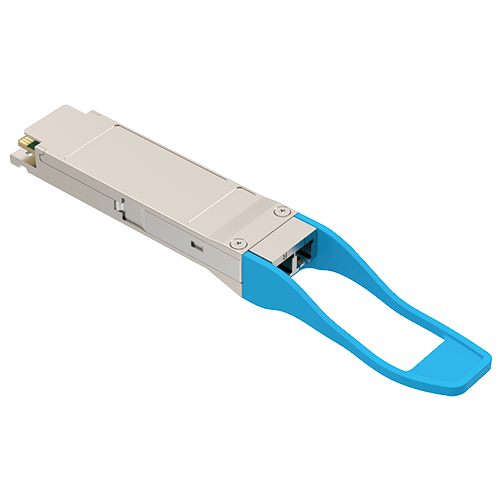

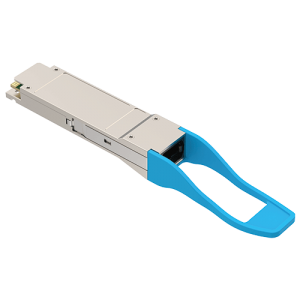

40G QSFP+ LR4 DML CWDM4 10km SMF MPO Optical Transceiver
FIBERSTAMP 40G QSFP+ LR4 optical transceiver module is designed for medium to long-distance interconnects in data centers, complying with the IEEE 802.3ba 40GBASE-LR4 Ethernet transmission protocol. It is available in a dual-rate version supporting both 40GE and OTU3. This product series features an integrated pair of 4-channel MUX and DEMUX, with the center wavelengths of the four channels being 1271nm, 1291nm, 1311nm, and 1331nm. It utilizes a pair of single-mode fibers for transmission, allowing for distances of up to 2km, 10km, or 20km.
Description
-
- Utilizes QSFP+ hot-pluggable form factor for a 4-channel optical module (available in both transceiver and receiver-only DPI versions)
- Features 4-channel non-cooled CWDM DML lasers and high-sensitivity PIN-TIA
- Uses multiplexers and demultiplexers based on TFF or AAWG technology
- Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 Ethernet transmission protocol
- Maximum transmission rate of up to 41.25Gbps (optional 40GE/OTU3 dual-rate version)
- Transmits over a pair of single-mode fibers with distances of up to 2km, 10km, or 20km
- Power consumption less than 2.5W
- Dual LC optical connectors
- Options for commercial and extended operating temperature ranges
- Power supply voltage of 3.3V
- Compliant with RoHS environmental standards (lead-free)
| P/N | Description |
|---|---|
| FBF-E40C4K10C FBF-N40C4K10C |
40GE QSFP+ LR4 DML CWDM4 10km Optical Transceiver (TFF) |
Additional Information
| Application | |
|---|---|
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
Related Products
-
-
-
-
-
-
-
-
-

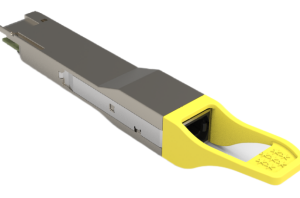

Optical TransceiversSiPh 800G QSFP-DD 2xFR4 CWDM4 2km SMF 2xDuplex LC Optical Transceiver
Read more -
Optical Transceivers

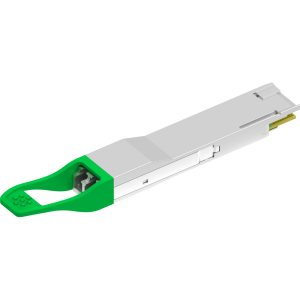

SiPh 800G QSFP-DD 2xLR4 CWDM4 10km SMF 2xDuplex LC Optical Transceiver
