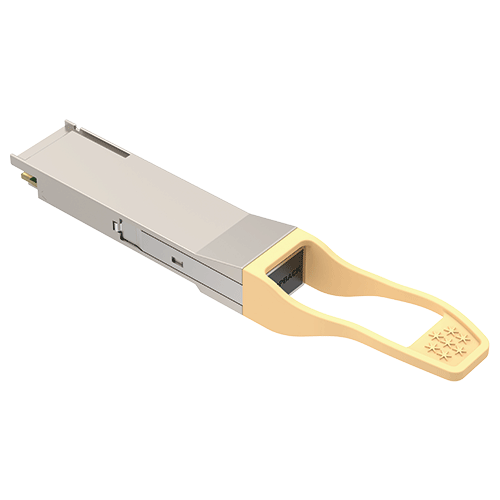

40G QSFP+ SR4 VCSEL 850nm 150m MMF MPO Optical Transceiver

FIBERSTAMP 40G QSFP+ SR4 optical transceiver modules are designed for short-distance interconnection between devices within data centers. They comply with the IEEE 802.3ba 40GBASE-SR4 Ethernet transmission protocol and offer optional dual-rate versions supporting 40GE/OTU3. These modules utilize 4 pairs of parallel multimode fibers for transmission, with a center wavelength of 850nm. The maximum transmission distance is 100m (OM3 MMF) or 150m (OM4 MMF). Industrial-grade operating temperature range options are available.

Get A Quote

Description

- 4-channel full-duplex optical transceiver module with hot-pluggable QSFP+ form factor
- 4-channel 850nm VCSEL array and PIN photodetector array
- Each channel supports a maximum transmission rate of 10.5Gbps or 11.3Gbps
- Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 Ethernet transmission protocol
- Compatible with IEEE 802.3ae 10GBASE-SR Ethernet transmission protocol
- Compatible with InfiniBand 4x SDR/DDR/QDR transmission protocol
- Optional dual-rate version supporting 40GE/OTU3
- Utilizes 4 pairs of parallel multimode fibers for transmission, with a maximum distance of 100m (OM3 MMF) or 150m (OM4 MMF)
- Power consumption is less than 1.5W
- MPO12 optical connector
- Available in commercial and industrial operating temperature ranges
- Power supply voltage of 3.3V
- Compliant with RoHS environmental standards (lead-free)

P/N	Description
FBG-100L4K10C	40GE QSFP+ SR4 VCSEL 850nm 150m Optical Transceiver Module (latch version)
FBG-100L4K10T	Industrial-grade 40GE QSFP+ SR4 VCSEL 850nm 150m Optical Transceiver Module

Additional Information

Application	Data Center, Metropolitan Area Network, Telecom
Media Type	MMF
Interface	MPO/MTP
Product Type	Pluggable Optical Modules
Protocol	Ethernet, InfiniBand, OTN
Reach	0.5m-2km
Wavelength	850nm
