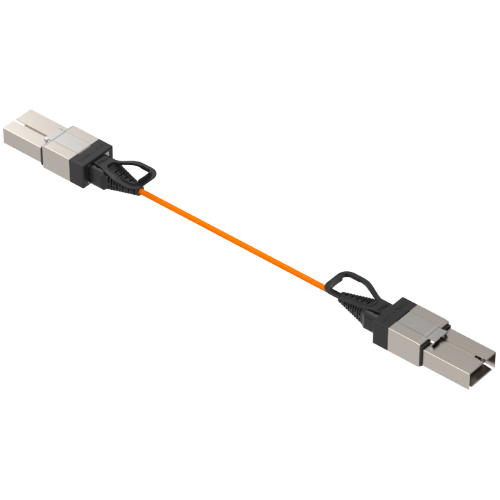

120G CXP Active Optical Cables 12x10G NRZ, 300Meters(984ft)
FIBERSTAMP 120G CXP AOC active optical cable is used for short-distance interconnection between internal devices in the data center. It complies with IEEE 802.3ba 100GBASE-SR10 Ethernet transmission protocol, and is also compatible with IEEE 802.3ae 10GBASE-SR Ethernet and InfiniBand QDR transmission protocol . This series of products uses 12 pairs of parallel multimode optical fiber transmission, and the distance can reach up to 300m (OM3) or 400m (OM4).
Description
- An active optical cable assembly with a 120G CXP SR10 optical transceiver module integrated at each end
- Each side contains 12 channels of 850nm VCSEL and PIN
- The transmission rate of each channel can reach up to 103.125Gbps
- Compliant with CXP MSA and IEEE 802.3ba 100GBASE-SR10 Ethernet transmission protocol
- Compatible with IEEE 802.3ae 10GBASE-SR Ethernet and InfiniBand QDR transport protocols
- Using 12 pairs of parallel multimode optical fiber transmission, the distance can reach up to 300m (OM3) or 400m (OM4)
- Power consumption is less than 4.5W (per 120G CXP SR10 optical module)
- Commercial grade operating temperature range
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FYT-120MxxxC | 120G CXP AOC |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
